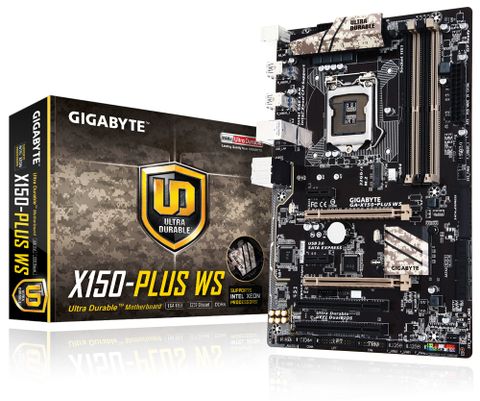

Bo mạch chủ GIGABYTE X150 Plus WS C232 hỗ trợ bộ vi xử lý Intel® Xeon® E3-1200 v5 và Bộ vi xử lý Intel® Core ™ / Pentium® / Celeron® thế hệ thứ 6, mang lại những tính năng tiên tiến và hiệu năng tối ưu chiếc máy tính của bạn.
Mainboard được trang bị cổng M.2 cho tốc độ lưu trữ nhanh hơn đáng kể và hỗ trợ cổng giao tiếp PCIe và SATA cho các thiết bị SSD M.2.
Main được trang bị cổng SATA Express thế hệ mới kết hợp PCI Express và SATA cung cấp băng thông cao hơn với tốc độ truyền dữ liệu lên đến 16Gb/s.
2 cổng CrossFire hỗ trợ 2 card màn hình cho hiệu suất đồ họa tối ưu, đáp ứng các yêu cầu xử lí với tốc độ khung hình cao mà không ảnh hưởng đến độ phân giải.
Support for Intel® Xeon® E3-1200 v5/E3-1200 v6 processors/Intel® Core™ processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
* For Intel® Xeon® E3-1200 v6 / 7th Generation Intel® Core™ processors support need to update the latest BIOS.
L3 cache varies with CPU
Intel® C232 Chipset
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Realtek® ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Intel® GbE LAN chip (10/100/1000 Mbit)
1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
2 x PCI slots
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2/x1 SSD support)
1 x SATA Express connector
* The SATA Express connector is not compatible with regular SATA devices.
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Support for 2-Way AMD CrossFire™ technology
6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
1 x SATA Express connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x Thunderbolt™ add-in card connector
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
1 x PS/2 keyboard port
1 x PS/2 mouse port
2 x USB 2.0/1.1 ports
4 x USB 3.0/2.0 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
Support for APP Center
Support for Q-Flash
Support for Smart Switch
Support for Xpress Install
Windows® 10 64-bit (for 7th Generation Intel® Processors)
Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6thGeneration Intel® Processors)
ATX Form Factor; 30.5cm x 20.0cm
