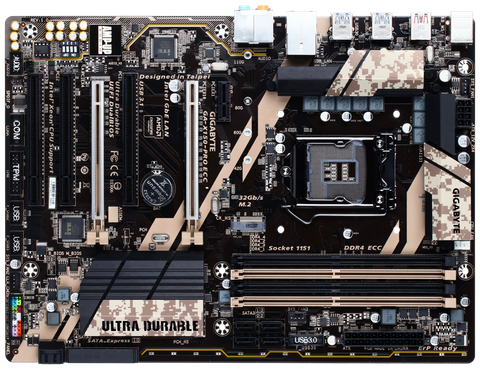

Mainboard X150 Pro ECC là bo mạch thuộc dòng sản phẩm Ultra Durable của Gigabyte gồm các công nghệ độc quyền và đảm bảo sự bảo vệ tốt nhất cho máy tính của bạn.
Bo mạch chủ Gigabyte series C232 hỗ trợ chip Intel Xeon E3-1200 v5 và các chip thể hệ 6, cung cấp các tính năng tiên tiến và hiệu xuất tối ưu. Bộ điều khiển Intel® USB 3.1 với USB Type-C PCIe Gen3, cho tốc độ lên đến 16Gb/s.
X150 Pro ECC trang bị 2 cổng CrossFire hỗ trợ 2 card màn hình cho hiệu suất đồ họa tối ưu, đáp ứng các yêu cầu xử lí với tốc độ khung hình cao mà không ảnh hưởng đến độ phân giải.
Cổng kết nối PCIe Gen3 x4 M.2 với tốc độ truyền dữ liệu lên đến 32Gb/s (hỗ trợ PCIe NVMe và SATA SSD) và SATA Express cho tốc độ truyền dữ liệu lên đến 16Gb/s
Các tụ âm thanh cung cấp tốt nhất và mở rộng âm thanh để tạo hiệu ứng thực tế nhất. Realtek ALC1150 là một codec âm thanh độ nét cao đa kênh hiệu năng cao mang đến trải nghiệm nghe nhạc đặc biệt với SNR 115dB, đảm bảo người dùng có được chất lượng âm thanh tốt nhất có thể từ máy tính.
Support for Intel® Xeon® E3-1200 v5/E3-1200 v6 processors/Intel® Core™ processors/Intel® Pentium®processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
Intel® C232 Chipset
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Realtek® ALC1150 codec
TI Burr Brown® NE5532 operational amplifier
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Intel® GbE LAN chip (10/100/1000 Mbit)
1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
3 x PCI slots
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2/x1 SSD support)
1 x SATA Express connector
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Support for 2-Way AMD CrossFire™ technology
6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Chipset+Intel® USB 3.1 Controller:1 x USB Type-C™ port on the back panel, with USB 3.1 support
1 x USB 3.1 Type-A port (red) on the back panel
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
1 x SATA Express connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x serial port header
1 x Clear CMOS jumper
1 x audio gain control switch
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x USB Type-C™ port, with USB 3.1 support
1 x USB 3.1 Type-A port (red)
4 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
iTE® I/O Controller Chip
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Support for APP Center
@BIOS
ON/OFF Charge
Support for Q-Flash
Support for Smart Switch
Support for Xpress Install
Windows® 10 64-bit (for 7th Generation Intel® Processors)
Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
ATX Form Factor; 30.5cm x 22.5cm
