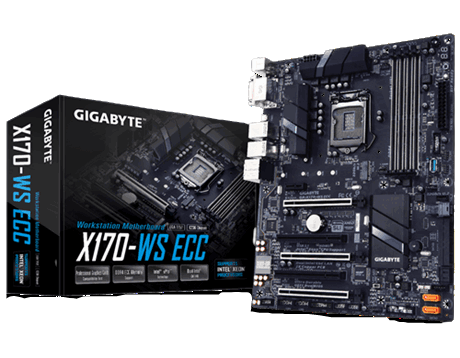

Mainboard Gigabyte X170-ws Ecc Socket Lga1151 Chipset Intel® C236

Thông Số Kỹ Thuật
 ·         CPU
1.    Support for Intel® Xeon® E3-1200 v5/E3-1200 v6 processors/Intel® Core™ processors/Intel® Pentium®processors/Intel® Celeron® processors in the LGA1151 package
2.    L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1.    Intel® C236 Chipset
Memory
1.    4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2.    Dual channel memory architecture
3.    Support for DDR4 2133 MHz memory modules
4.    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
5.    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1.    1 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz
2.    1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
Maximum shared memory of 1024 MB
Audio
1.    Realtek® ALC1150 codec
2.    High Definition Audio
3.    2/4/5.1/7.1-channel
4.    Support for S/PDIF Out
LAN
1.    2 x Intel® GbE LAN chips (10/100/1000 Mbit)
2.    Support for Teaming
Expansion Slots
1.    1 x PCI Express x16 slot, running at x16 (PCIEX16)
2.    1 x PCI Express x16 slot, running at x8 (PCIEX8)
3.    1 x PCI Express x16 slot, running at x4 (PCIEX4)
4.    1 x PCI Express x1 slot
5.    2 x PCI slot
Storage Interface
Chipset:
1.    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
2.    1 x U.2 connector
3.    2 x SATA Express connectors
4.    6 x SATA 6Gb/s connectors (SATA3 0~5)
5.    Support for RAID 0, RAID 1, RAID 5, and RAID 10
ASMedia® ASM1061 chip:
6.    2 x SATA 6Gb/s connectors (GSATA3 6~7), supporting AHCI mode only
Multi-Graphics Technology
1.    Support for 3-Way/2-Way AMD CrossFire™ and 2-Way NVIDIA® SLI™ Technology
USB
Chipset+Intel® USB 3.1 Controller:
1.    1 x USB Type-C™ port on the back panel, with USB 3.1 support
2.    1 x USB 3.1 Type-A port (red) on the back panel
ŠŠ Chipset:
3.    6 x USB 3.0/2.0 ports (3 ports on the back panel, 1 ports onboard, 2 ports available through the internal USB headers)
4.    6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1.    1 x 24-pin ATX main power connector
2.    1 x 8-pin ATX 12V power connector
3.    1 x power information detection header (PMBUS)
4.    1 x U.2 connector
5.    1 x M.2 Socket 3 connector
6.    2 x SATA Express connectors
7.    8 x SATA 6Gb/s connectors
8.    2 x SATA power headers (SATA_DOM)
9.    2 x SATA detection headers (SATA_SGP)
10.                       1 x CPU fan header
11.                       1 x water cooling fan header (CPU_OPT)
12.                       1 x system fan header (SYS_FAN2)
13.                       3 x system fan/water cooling pump headers (SYS_FAN1/3/4_PUMP)
14.                       3 x smart fan mode control jumpers
15.                       3 x temperature sensor headers
16.                       1 x front panel header
17.                       1 x front panel audio header
18.                       1 x USB 3.0/2.0 header
19.                       1 x USB 3.0/2.0 port (USB30_OB)
20.                       2 x USB 2.0/1.1 headers
21.                       1 x S/PDIF Out header
22.                       1 x Trusted Platform Module (TPM) header
23.                       2 x serial port headers
24.                       1 x Thunderbolt™ add-in card connector
25.                       1 x Clear CMOS jumper
26.                       1 x power button
27.                       1 x reset button
28.                       1 x Clear CMOS button
29.                       1 x BIOS switch
Back Panel Connectors
1.    1 x PS/2 keyboard/mouse port
2.    1 x DVI-D port
3.    1 x DisplayPort
4.    1 x USB Type-C™ port, with USB 3.1 support
5.    1 x USB 3.1 Type-A port (red)
6.    3 x USB 3.0/2.0 ports
7.    2 x USB 2.0/1.1 ports
8.    2 x RJ-45 ports
9.    1 x optical S/PDIF Out connector
10.                       5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
1.    iTE® I/O Controller Chip
H/W Monitoring
1.    System voltage detection
2.    CPU/System/Chipset temperature detection
3.    CPU/CPU OPT/System fan (pump) speed detection
4.    CPU/System/Chipset overheating warning
5.    CPU/CPU OPT/System fan (pump) fail warning
6.    CPU/CPU OPT/System fan (pump) speed control
BIOS
1.    2 x 128 Mbit flash
2.    Use of licensed AMI UEFI BIOS
3.    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1.    Support for APP Center
2.    @BIOS
3.    Ambient LED
4.    ON/OFF Charge
5.    System Information Viewer
6.    Support for Q-Flash
7.    Support for Xpress Install
Bundle Software
1.    Norton® Internet Security (OEM version)
2.    Intel® Smart Response Technology (Olny for iRST mode)
Operating System
1.    Windows® 10 64-bit (for 7th Generation Intel® Processors)
2.    Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
1.    ATX Form Factor; 30.5cm x 24.4cm
