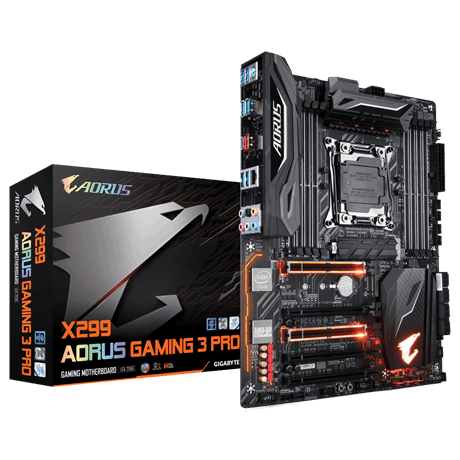

Mainboard Gigabyte X299 Aorus Gaming 3 Socket 2066

Thông Số Kỹ Thuật

Tên gọi
GIGABYTE X299 AORUS Gaming 3
Chipset / Socket
Intel® X299 Express Chipset / Intel Socket 2066
CPU hỗ trợ
Intel® Core™ X series processors in the LGA2066 package
Bộ nhớ (RAM)
8 x DDR4 DIMM sockets supporting up to 128 GB of system memory.
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory.
4 channel memory architecture.
Dual channel memory architecture.
Support for DDR4
Khe cắm mở rộng
• 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
• 1 x PCI Express x16 slot, running at x8 (PCIEX8)
• 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G)
• 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G)
8 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
Intel® VROC ready
Âm thanh
• Realtek® ALC1220 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out
LAN / Wireless
• Intel® GbE LAN chip (10/100/1000 Mbit)
Cổng kết nối
- 1 x Clear CMOS button
- 1 x BIOS FLASHBACK+ button
- 1 x PS/2 keyboard/ mouse combo port
- 3 x USB 2.0 Type-A ports
- 4 x USB 3.1 Gen1 Type-A ports
- 1 x LAN (RJ45) port
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacks
Chuẩn kích cỡ
• 12.0 in. x 8.9 in. (30.5 cm x 24.4 cm)
• ATX Form Factor
Đa GPU
• Supports 2-Way AMD® CrossFire™ Technology*
• Supports NVIDIA® Quad SLI™, 3-Way SLI™ and SLI™v
