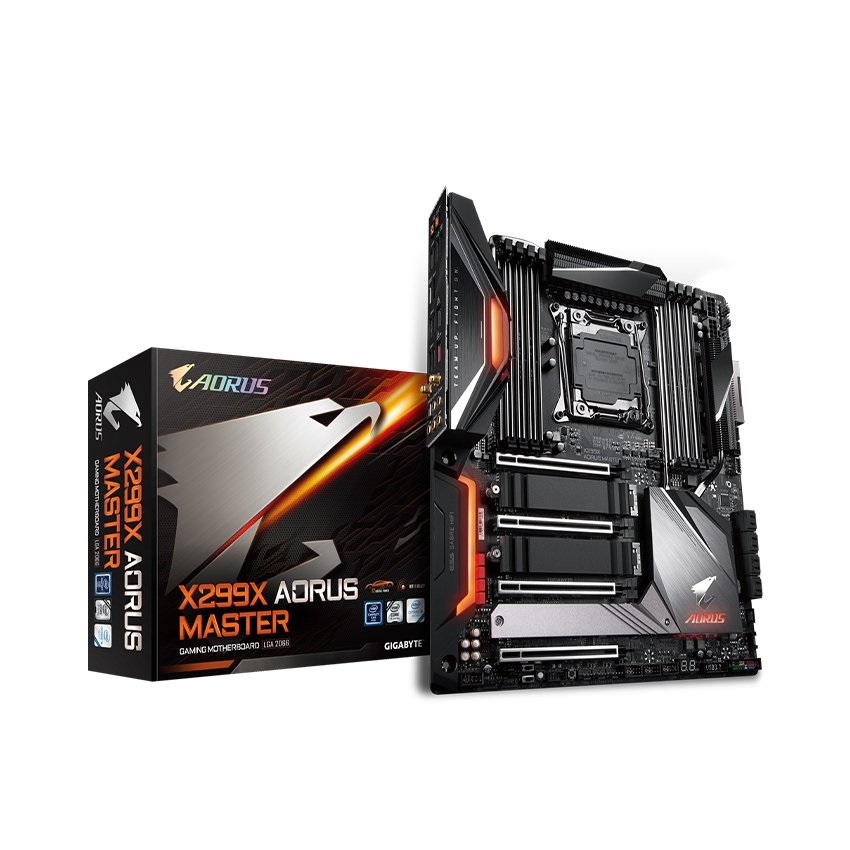

Mainboard Gigabyte X299x Aorus Master (intel X299, Socket 2066)

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

X299X AORUS MASTER

CPU hỗ trợ

Intel

Chipset

X299

RAM hỗ trợ

8 x DDR4 DIMM tối đa 256 GB , 2933/2666/2400/2133 MHz memory modules

Khe cắm mở rộng

Intel® Core™ X series 48-lane processors:
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)

Intel® Core™ X series 44-lane processors:
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
1 x PCI Express x16 slot, running at x8 (PCIEX8_1)
1 x PCI Express x16 slot, running at x4 (PCIEX8_2)

Intel® Core™ X series 28-lane processors:
1 x PCI Express x16 slot, running at x16 (PCIEX16_1)
1 x PCI Express x16 slot, running at x8 (PCIEX16_2)
1 x PCI Express x16 slot, running at x4 (PCIEX8_2)

Ổ cứng hỗ trợ

CPU:1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q)

Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P)8 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
8 x SATA 6Gb/s connectors
1 x Intel® VROC Upgrade Key header
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
3 x USB 2.0/1.1 headers
1 x noise detection header
1 x Thunderbolt™ add-in card connector
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x power button
1 x reset button
2 x temperature sensor headers
1 x Clear CMOS jumper
2 x BIOS switches

Cổng kết nối (Back Panel)

1 x Q-Flash Plus button
1 x Clear CMOS button
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
6 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
2 x RJ-45 ports
2 x SMA antenna connectors (2T2R)
1 x optical S/PDIF Out connector
5 x audio jacks

LAN / Wireless

1 x Aquantia 5GbE LAN chip (5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)
1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN2)

Kích cỡ

E-ATX Form Factor; 30.5cm x 26.9cm
