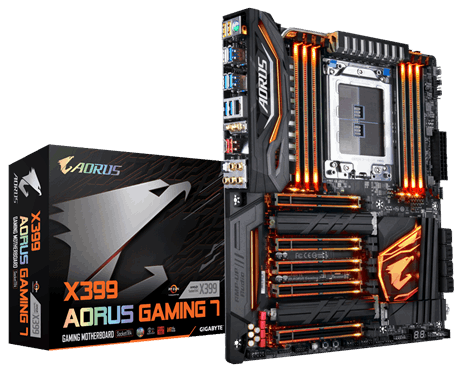

Mainboard Gigabyte X399 Aorus Gaming 7 (rev. 1.0)

Thông Số Kỹ Thuật

CPU
SocketTR4:
1.     AMD Ryzen™ Threadripper™ processor
(Please refer "CPU Support List" for more information.)
·         Chipset
1.     AMD X399
·         Memory
1.     8 x DDR4 DIMM sockets supporting up to 128 GB of system memory
2.     Quad channel memory architecture
3.     Support for DDR4
4.     Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
5.     Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6.     Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
·         Audio
1.     Raltek® ALC1220 codec
2.     Support for Sound BlasterX 720°
3.     High Definition Audio
4.     2/4/5.1/7.1-channel
5.     Support for S/PDIF Out
·         LAN
1.     Rivet Networks Killer™ E2500 LAN chip (10/100/1000 Mbit)
·         Wireless Communication module
1.     Intel® Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
2.     BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
3.     Support for 11ac wireless standard and up to 867 Mbps data rate
·         Expansion Slots
1.     2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2.     2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
(The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
3.     1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCIEX4 slot conforms to PCI Express 2.0 standard.)
·         Storage Interface
1.     2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G)(M2Q_32G)
2.     1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)
3.     8 x SATA 6Gb/s connectors
4.     Support for RAID 0, RAID 1, and RAID 10
·         Multi-Graphics Technology
1.     Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
2.     Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies
·         USB
CPU:
1.     8 x USB 3.1 Gen 1 ports on the back panel
Chipset+ASMedia® USB 3.1 Gen 2 Controller:
2.     1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header
Chipset:
3.     1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
4.     1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
5.     2 x USB 3.1 Gen 1 ports available through the internal USB header
6.     4 x USB 2.0/1.1 ports available through the internal USB headers
·         Internal I/O Connectors
1.     1 x 24-pin ATX main power connector
2.     1 x 8-pin ATX 12V power connector
3.     1 x 4-pin ATX 12V power connector
4.     1 x CPU fan header
5.     1 x water cooling CPU fan header
6.     4 x system fan headers
7.     2 x system fan/water cooling pump headers
8.     1 x digital LED strip header
9.     1 x digital LED strip power select jumper
10.                                                2 x RGB (RGBW) LED strip extension cable headers
11.                                                3 x M.2 Socket 3 connectors
12.                                                8 x SATA 6Gb/s connectors
13.                                                1 x front panel header
14.                                                1 x front panel audio header
15.                                                1 x S/PDIF Out header
16.                                                1 x USB Type-C™ header with USB 3.1 Gen 2 support
17.                                                1 x USB 3.1 Gen 1 header
18.                                                2 x USB 2.0/1.1 headers
19.                                                1 x Trusted Platform Module (TPM) header
20.                                                1 x power button
21.                                                1 x reset button
22.                                                1 x Clear CMOS button
23.                                                2 x temperature sensor headers
24.                                                1 x Clear CMOS jumper
·         Back Panel Connectors
1.     1 x PS/2 keyboard/mouse port
2.     1 x USB Type-C™ port, with USB 3.1 Gen 2 support
3.     1 x USB 3.1 Gen 2 Type-A port (red)
4.     8 x USB 3.1 Gen 1 ports
5.     1 x RJ-45 port
6.     2 x MMCX antenna connectors (2T2R)
7.     1 x optical S/PDIF Out connector
8.     5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
·         I/O Controller
1.     iTE® I/O Controller Chip
·         H/W Monitoring
1.     Voltage detection
2.     Temperature detection
3.     Fan speed detection
4.     Water cooling flow rate detection
5.     Overheating warning
6.     Fan fail warning
7.     Fan speed control
·         BIOS
1.     2 x 128 Mbit flash
2.     Use of licensed AMI UEFI BIOS
3.     Support for DualBIOS™
4.     Support for Q-Flash Plus
5.     PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
·         Unique Features
1.     Support for APP Center
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
USB DAC-UP 2
V-Tuner
2.     Support for Q-Flash
3.     Support for Xpress Install
·         Bundle Software
1.     Norton® Internet Security (OEM version)
·         Operating System
1.     Support for Windows 10 64-bit
·         Form Factor
1.     ATX Form Factor; 30.5cm x 24.4cm
