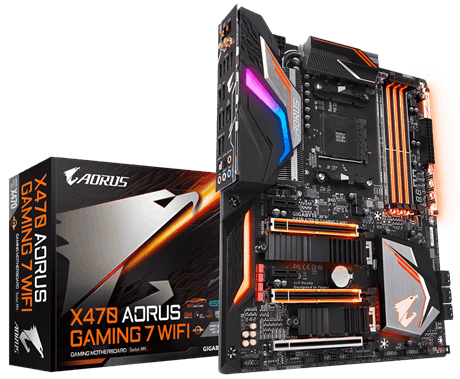

Mainboard Gigabyte X470 Aorus Gaming 7 Wifi Socket Amd Ryzen

Thông Số Kỹ Thuật

Hãng sản xuất
Gigabyte
Chủng loại
X470 AORUS GAMING 7 WIFI
CPU hỗ trợ
AM4 Socket:
AMD Ryzen™ processor
Chipset
X470
Bộ nhớ trong
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
VGA onboard
Âm thanh
Realtek® ALC1220 codec
ES9018Q2C chip
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Khe mở rộng
1 x PCI Express x16 slot, running at x16 (PCIEX16)
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
(The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SOCKET connector.
2 x PCI Express x1 slots
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
Chuẩn lưu trữ
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SOCKET)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2B_SOCKET)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Cổng giao tiếp I/O sau
1 x power/reset button
1 x Clear CMOS button
2 x MMCX antenna connectors (2T2R)
6 x USB 3.1 Gen 1 ports
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red)
2 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
Công nghệ tích hợp
Kích thước
ATX Form Factor; 30.5cm x 24.4cm
