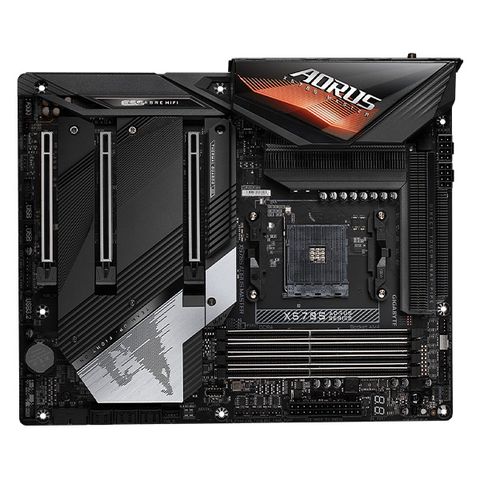

Mainboard Gigabyte X570s Aorus Master (rev. 1.0)

(Please refer “CPU Support List” for more information.)

• AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors:
  Support for DDR4 3200/2933/2667/2400/2133 MHz memory modules
• AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors:
  Support for DDR4 2933/2667/2400/2133 MHz memory modules
• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 Series Processors/AMD Ryzen™ 2000 Series Processors only.

1. AMDRyzen™ 5000 Series Processors/AMDRyzen™ 3000 Series Processors support PCIe 4.0 x16 mode
2. AMDRyzen™ 4000G-SeriesProcessors/AMDRyzen™ 2000 Series Processors support PCIe 3.0 x16 mode
3. AMDRyzen™ 3000G-SeriesProcessors/AMDRyzen™ 2000 G-Series Processors support PCIe 3.0 x8 mode

1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:

1. AMDRyzen™ 5000 Series Processors/AMDRyzen™ 3000 Series Processors support PCIe 4.0 x8 mode
2. AMDRyzen™ 4000G-SeriesProcessors/AMDRyzen™ 2000 Series Processors support PCIe 3.0 x8 mode
3. AMDRyzen™ 3000G-SeriesProcessors/AMDRyzen™ 2000 G-Series Processors do not support this slot
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
   * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

1. Supporting PCIe 4.0* /3.0 x4 mode
   * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
   * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.

1. AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
2. AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMDRyzen™ 2000SeriesProcessors/AMDRyzen™ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:

1. Supporting PCIe 4.0* /3.0 x4/x2 SSDs
   * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.

2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:

1. Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
   * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.

6 x SATA 6Gb/s connectors, integrated in the Chipset:

1. Support for RAID 0, RAID 1, and RAID 10
   * Refer to “1-9 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

1. Intel^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Intel^® Wi-Fi 6E AX210

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   * Actual data rate may vary depending on environment and equipment.

1. Realtek^® ALC1220-VB audio CODEC
   * The front panel line out jack supports DSD audio.
2. ESS SABRE9118 DAC chip
3. Support for DTS:X^® Ultra
4. High Definition Audio
5. 2/4/5.1/7.1-channel
6. Support for S/PDIF Out

1. 1 x Q-Flash Plus button
2. 1 x Clear CMOS button
3. 2 x SMA antenna connectors (2T2R)
4. 1 x USB Type-C^® port, with USB 3.2 Gen 2×2 support
5. 5 x USB 3.2 Gen 2 Type-A ports (red)
6. 2 x USB 3.2 Gen 1 ports
7. 4 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 1 x optical S/PDIF Out connector
10. 5 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 4 x system fan headers
6. 4 x system fan/water cooling pump headers
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 1 x CPU cooler LED strip/RGB LED strip header
10. 4 x M.2 Socket 3 connectors
11. 6 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support
15. 2 x USB 3.2 Gen 1 headers
16. 2 x USB 2.0/1.1 headers
17. 1 x noise detection header
18. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
19. 1 x Thunderbolt™ add-in card connector
20. 2 x temperature sensor headers
21. 1 x power button
22. 1 x reset button
23. 1 x Clear CMOS jumper
24. Voltage Measurement Points

1. ATX Form Factor; 30.5cm x 24.4cm
