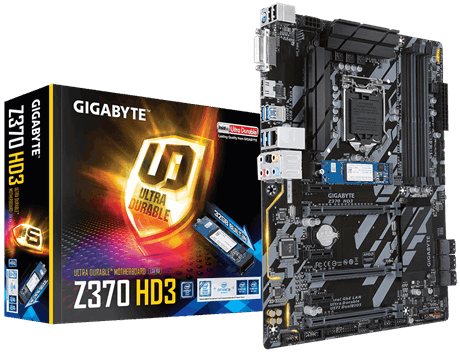

Mainboard Gigabyte Z370 Hd3-op Socket Lga1151v2

Thông Số Kỹ Thuật
   CPU
1.     Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors in the LGA1151 package
2.     L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
·         Chipset
1.     Intel® Z370 Express Chipset
·         Memory
1.     4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2.     Dual channel memory architecture
3.     Support for DDR4
4.     Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5.     Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6.     Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
·         Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1.     1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
2.     1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Maximum shared memory of 1 GB
·         Audio
1.     Realtek® ALC892 codec
2.     High Definition Audio
3.     2/4/5.1/7.1-channel
4.     Support for S/PDIF Out
·         LAN
1.     Intel® GbE LAN chip (10/100/1000 Mbit)
·         Expansion Slots
1.     1 x PCI Express x16 slot, running at x16 (PCIEX16)
2.     2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
3.     3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
·         Storage Interface
Chipset:
1.     1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
2.     32 GB Intel® Optane™ Memory pre-installed
3.     6 x SATA 6Gb/s connectors
4.     Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
·         Multi-Graphics Technology
1.     Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
·         USB
Chipset:
1.     8 x USB 3.1 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
2.     6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
·         Internal I/O Connectors
1.     1 x 24-pin ATX main power connector
2.     1 x 8-pin ATX 12V power connector
3.     1 x CPU fan header
4.     3 x system fan headers
5.     1 x RGB LED strip header
6.     6 x SATA 6Gb/s connectors
7.     1 x M.2 Socket 3 connector
8.     1 x front panel header
9.     1 x front panel audio header
10.                                                1 x S/PDIF Out header
11.                                                2 x USB 3.1 Gen 1 headers
12.                                                2 x USB 2.0/1.1 headers
13.                                                1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
14.                                                1 x parallel port header
15.                                                1 x serial port header
16.                                                1 x Clear CMOS jumper
·         Back Panel Connectors
1.     1 x PS/2 keyboard/mouse port
2.     1 x DVI-D port
3.     1 x HDMI port
4.     4 x USB 3.1 Gen 1 ports
5.     2 x USB 2.0/1.1 ports
6.     1 x RJ-45 port
7.     6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
·         I/O Controller
1.     iTE® I/O Controller Chip
·         H/W Monitoring
1.     Voltage detection
2.     Temperature detection
3.     Fan speed detection
4.     Overheating warning
5.     Fan fail warning
6.     Fan speed control
·         BIOS
1.     2 x 128 Mbit flash
2.     Use of licensed AMI UEFI BIOS
3.     Support for DualBIOS™
4.     PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
·         Unique Features
1.     Support for APP Center
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner
2.     Support for Q-Flash
3.     Support for Xpress Install
·         Bundle Software
1.     Norton® Internet Security (OEM version)
2.     cFosSpeed
·         Operating System
1.     Support for Windows 10 64-bit
·         Form Factor
1.     ATX Form Factor; 30.5cm x 22.5cm
