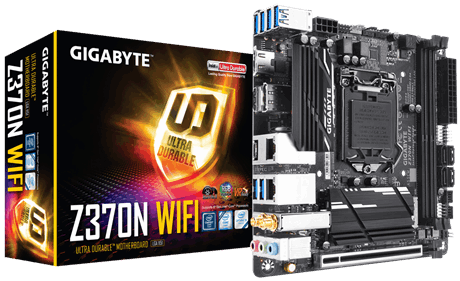

Mainboard Gigabyte Z370n Wifi Socket Lga1151v2

Thông Số Kỹ Thuật
CPU
1.     Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors in the LGA1151 package
2.     L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
·         Chipset
1.     Intel® Z370 Express Chipset
·         Memory
1.     2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
2.     Dual channel memory architecture
3.     Support for DDR4
4.     Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5.     Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6.     Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
·         Onboard Graphics
Integrated Graphics Processor+MegaChips MCDP2800 chip:
1.     1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
(Requires the latest Intel® graphics driver from the GIGABYTE website.)
Integrated Graphics Processor-Intel® HD Graphics support:
2.     1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
3.     1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Support for up to 3 displays at the same time
Maximum shared memory of 1 GB
·         Audio
1.     Realtek® ALC1220 codec
2.     High Definition Audio
3.     2/4/5.1/7.1-channel
4.     Support for S/PDIF Out
·         LAN
1.     2 x Intel® GbE LAN chips (10/100/1000 Mbit)
·         Wireless Communication module
1.     Intel® Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
2.     BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
3.     Support for 11ac wireless standard and up to 867 Mbps data rate
·         Expansion Slots
1.     1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
·         Storage Interface
Chipset:
1.     1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_32G)
2.     1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 PCIe x4/x2 SSD support) (M.2)
3.     4 x SATA 6Gb/s connectors
4.     Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
·         USB
Chipset:
1.     2 x USB 2.0/1.1 ports available through the internal USB header
2.     8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header)
3.     1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
·         Internal I/O Connectors
1.     1 x 24-pin ATX main power connector
2.     1 x 8-pin ATX 12V power connector
3.     1 x CPU fan header
4.     2 x system fan headers
5.     1 x digital LED strip header
6.     1 x digital LED strip power select jumper
7.     1 x RGB (RGBW) LED strip header
8.     4 x SATA 6Gb/s connectors
9.     2 x M.2 Socket 3 connectors(one on the back of the motherboard)
10.                                                1 x front panel header
11.                                                1 x front panel audio header
12.                                                1 x USB 3.1 Gen 1 header
13.                                                1 x USB 2.0/1.1 header
14.                                                1 x S/PDIF Out header
15.                                                1 x speaker header
16.                                                1 x Clear CMOS jumper
17.                                                1 x chassis intrusion header
·         Back Panel Connectors
1.     2 x HDMI ports
2.     1 x DisplayPort
3.     2 x SMA antenna connectors (2T2R)
4.     6 x USB 3.1 Gen 1 ports
5.     1 x USB Type-C™ port, with USB 3.1 Gen 1 support
6.     2 x RJ-45 ports
7.     3 x audio jacks (Line In, Line Out, Mic In)
·         I/O Controller
1.     iTE® I/O Controller Chip
·         H/W Monitoring
1.     Voltage detection
2.     Temperature detection
3.     Fan speed detection
4.     Overheating warning
5.     Fan fail warning
6.     Fan speed control
·         BIOS
1.     2 x 128 Mbit flash
2.     Use of licensed AMI UEFI BIOS
3.     Support for DualBIOS™
4.     PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
·         Unique Features
1.     Support for APP Center
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner
2.     Support for Q-Flash
3.     Support for Xpress Install
·         Bundle Software
1.     Norton® Internet Security (OEM version)
2.     cFosSpeed
·         Operating System
1.     Support for Windows 10 64-bit
·         Form Factor
1.     Mini-ITX Form Factor; 17.0cm x 17.0cm
