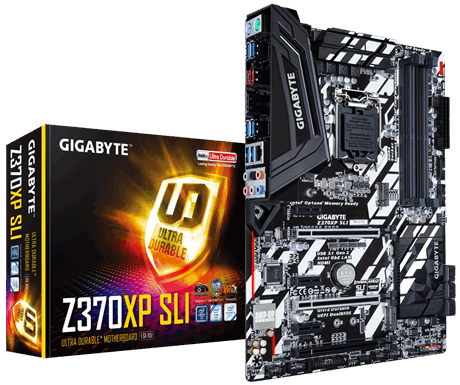

Mainboard Gigabyte Z370xp Sli Socket 1151v2

Thông Số Kỹ Thuật
CPU
1.     Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors in the LGA1151 package
2.     L3 cache varies with CPU
·         Chipset
1.     Intel® Z370 Express Chipset
·         Bộ nhớ
1.     4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2.     Dual channel memory architecture
3.     Support for DDR4 4000
4.     Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5.     Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6.     Support for Extreme Memory Profile (XMP) memory modules
·         Card đồ họa tích hợp
Integrated Graphics Processor-Intel® HD Graphics support:
1.     1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Maximum shared memory of 1 GB
·         Âm thanh
1.     Realtek® ALC1220 codec
2.     High Definition Audio
3.     2/4/5.1/7.1-channel
4.     Support for S/PDIF Out
·         LAN
1.     Intel® GbE LAN chip (10/100/1000 Mbit)
·         Khe cắm mở rộng
1.     1 x PCI Express x16 slot, running at x16 (PCIEX16)
2.     1 x PCI Express x16 slot, running at x8 (PCIEX8)
3.     1 x PCI Express x16 slot, running at x4 (PCIEX4)
4.     3 x PCI Express x1 slots
·         Giao diện lưu trữ
Chipset:
1.     1 x M.2 connector
2.     1 x M.2 connector
3.     6 x SATA 6Gb/s connectors
4.     Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
·         Công nghệ đa card đồ họa
1.     Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
2.     Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies
·         USB
Chipset+ASMedia® USB 3.1 Gen 2 Controller:
1.     1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
2.     1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset:
3.     10 x USB 3.1 Gen 1 ports
4.     4 x USB 2.0/1.1 ports available through the internal USB headers
·         Kết nối I/O bên trong
1.     1 x 24-pin ATX main power connector
2.    1 x 8-pin ATX 12V power connector
3.     1 x CPU fan header
4.     1 x water cooling CPU fan header
5.     2 x system fan headers
6.     1 x system fan/water cooling pump header
7.     1 x RGB LED strip header
8.     2 x M.2 Socket 3 connectors
9.     6 x SATA 6Gb/s connectors
10. 1 x front panel header
11. 1 x front panel audio header
12.  1 x S/PDIF Out header
13. 2 x USB 3.1 Gen 1 headers
14. 2 x USB 2.0/1.1 headers
15. 1 x Trusted Platform Module (TPM) header 16. 1 x Thunderbolt™ add-in card connector
17. 1 x serial port header
18. 1 x parallel port header
19. 1 x Clear CMOS jumper
·         Kết nối bảng phía sau
1.     1 x PS/2 keyboard port
2.     1 x PS/2 mouse port
3.     1 x HDMI port
4.     1 x USB Type-C™ port, with USB 3.1 Gen 2 support
5.     1 x USB 3.1 Gen 2 Type-A port (red)
6.     6 x USB 3.1 Gen 1 ports
7.     1 x RJ-45 port
8.     6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
·         Điều khiển I/O
1.     iTE® I/O Controller Chip
·         Theo dõi phần cứng
1.     Voltage detection
2.     Temperature detection
3.     Fan speed detection
4.     Water cooling flow rate detection
5.     Overheating warning
6.     Fan fail warning
7.     Fan speed control
·         BIOS
1.     2 x 128 Mbit flash
2.     Use of licensed AMI UEFI BIOS
3.     Support for DualBIOS™
4.     PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
·         Tính năng duy nhất
1.     Support for APP Center
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner
2.     Support for Q-Flash
3.     Support for Xpress Install
·         Gói phần mềm
1.     Norton® Internet Security (OEM version)
2.     cFosSpeed
·         Hệ điều hành
1.     Support for Windows 10 64-bit
·         Hệ số khuôn
1.     ATX Form Factor; 30.5cm x 22.5cm
