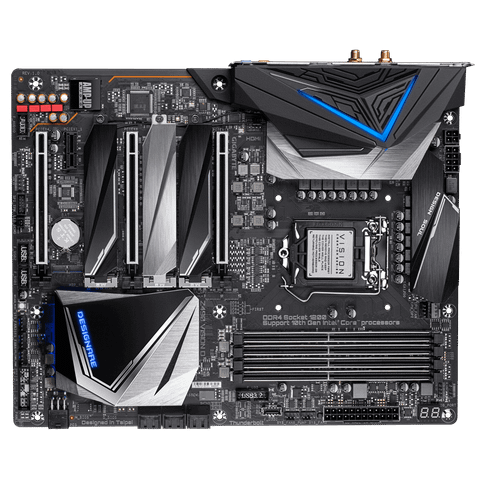

Mainboard Gigabyte Z490 Vision D (rev. 1.0)

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

Z490 VISION D

CPU hỗ trợ

Intel

Chipset

Z490

RAM hỗ trợ

4 x DDR4 DIMM , support up to 128GB
Intel Core™ i9/i7 processors:
Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz

Intel Core™ i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
1 x M.2 Socket 1 connector for an Intel CNVi wireless module (CNVI)

Ổ cứng hỗ trợ

1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x PEG power connector
5. 1 x CPU fan header
6. 1 x water cooling CPU fan header
7. 4 x system fan headers
8. 2 x system fan/water cooling pump headers
9. 2 x addressable LED strip headers
10. 2 x RGB LED strip headers
11. 3 x M.2 Socket 3 connectors
12. 6 x SATA 6Gb/s connectors
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x USB Type-C™ header, with USB 3.2 Gen 2 support
16. 1 x USB 3.2 Gen 1 header
17. 2 x USB 2.0/1.1 headers
18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
19. 2 x temperature sensor headers
20. 1 x Clear CMOS jumper
21. 1 x Q-Flash Plus button

Cổng kết nối (Back Panel)

1. 1 x DisplayPort In port
2. 2 x Thunderbolt™ 3 connectors (USB Type-C™ port, with USB 3.2 Gen 2 support)
3. 1 x HDMI port
4. 2 x SMA antenna connectors (2T2R)
5. 2 x USB 3.2 Gen 2 Type-A ports (red)
6. 4 x USB 3.2 Gen 1 ports
7. 2 x USB 2.0/1.1 ports
8. 2 x RJ-45 ports
9. 1 x optical S/PDIF Out connector
10. 5 x audio jacks

LAN / Wireless

1 x Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)(LAN1)
1 x Intel GbE LAN chip (1 Gbit/100 Mbit) (LAN2)

Kích cỡ

ATX Form Factor; 30.5cm x 24.4cm
