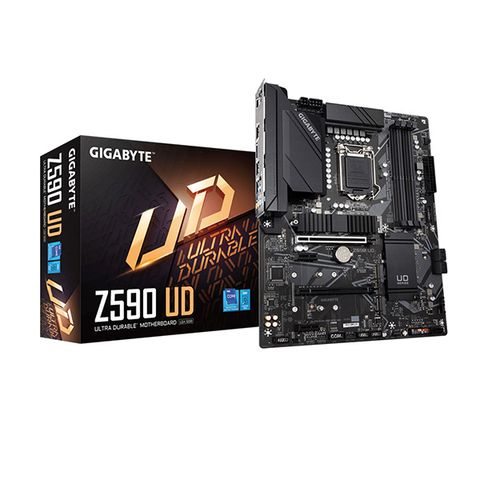

Mainboard Gigabyte Z590 Ud

Model

Z590 UD

CPU hỗ trợ

Intel

Chipset

Z590

RAM hỗ trợ

4 x DDR4 DIMM
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots

Ổ cứng hỗ trợ

CPU:
1 x M.2 connector
Chipset:
2 x M.2 connector
6 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1.        1 x 24-pin ATX main power connector

2.      1 x 8-pin ATX 12V power connector

3.      1 x 4-pin ATX 12V power connector

4.      1 x CPU fan header

5.      4 x system fan headers

6.      2 x addressable LED strip headers

7.      2 x RGB LED strip headers

8.      1 x Q-Flash Plus button

9.      5 x SATA 6Gb/s connectors

10.  3 x M.2 Socket 3 connectors

11.  1 x front panel header

12.  1 x front panel audio header

13.  1 x S/PDIF Out header

14.  1 x USB 3.2 Gen 1 header

15.  1 x USB Type-C® header, with USB 3.2 Gen 1 support

16.  2 x USB 2.0/1.1 headers

17.  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

18.  2 x Thunderbolt™ add-in card connectors

19.  1 x serial port header

20.  1 x Clear CMOS jumper

Cổng kết nối (Back Panel)

1.      1 x PS/2 keyboard/mouse port

2.      1 x DisplayPort

3.      2 x USB 3.2 Gen 2 Type-A ports (red)

4.      4 x USB 3.2 Gen 1 ports

5.      2 x USB 2.0/1.1 ports

6.      1 x RJ-45 port

7.      3 x audio jacks

LAN / Wireless

Realtek® 2.5GbE LAN chip ( 2.5 Gbit/ 1 Gbit/100 Mbit)

Kích cỡ

ATX Form Factor
30.5 cm x 24.4cm
