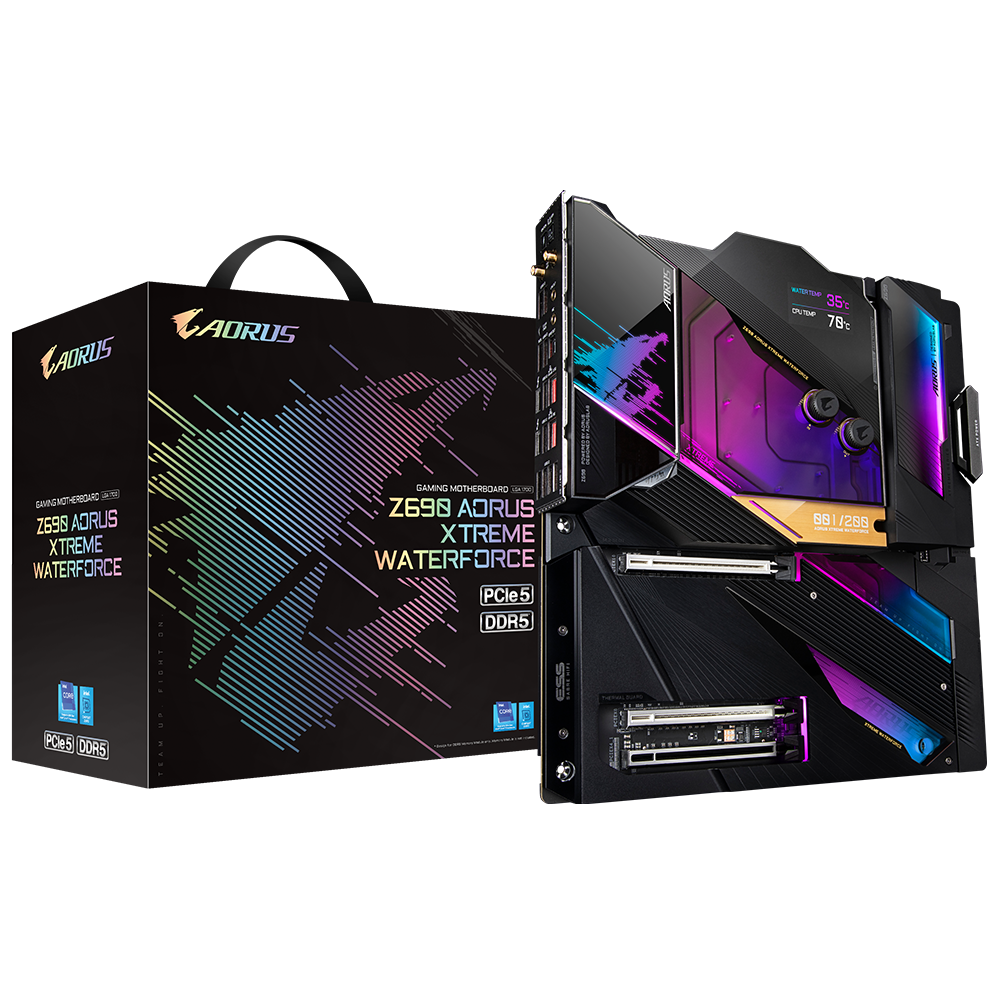

Mainboard Gigabyte Z690 Aorus Xtreme Waterforce Ddr5 (rev. 1.0)

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

Z490 AORUS XTREME WATERFORCE

CPU hỗ trợ

Intel

Chipset

Z490

RAM hỗ trợ

4 x DDR4 DIMM sockets supporting up to 128 GBIntel^® Core™ i9/i7 processors:

Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz

Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
Support for DDR4 2666/2400/2133 MHz

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
1 x PCI Express x16 slot, running at x4 (PCIEX4)

Ổ cứng hỗ trợ

1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2M_PCH)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_PCH)
6 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 1 x water cooling kit CPU LED header (LED_CPU)
6. 1 x water cooling kit Chipset LED header (LED_PCH)
7. 4 x system fan headers
8. 2 x system fan/water cooling pump headers
9. 1 x noise detection header
10. 2 x addressable LED strip headers
11. 2 x RGB LED strip headers
12. 6 x SATA 6Gb/s connectors
13. 3 x M.2 Socket 3 connectors
14. 1 x front panel header
15. 1 x front panel audio header
16. 1 x USB Type-C™ header, with USB 3.2 Gen 2 support
17. 1 x USB 3.2 Gen 1 header
18. 1 x USB 2.0/1.1 header
19. 2 x temperature sensor headers
20. 1 x power button
21. 1 x reset button
22. 1 x OC button
23. 2 x BIOS switches
24. Voltage Measurement Points

Cổng kết nối (Back Panel)

1. 1 x Q-Flash Plus button
2. 1 x Clear CMOS button
3. 2 x SMA antenna connectors (2T2R)
4. 2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.2 Gen 2 support)
5. 4 x USB 3.2 Gen 2 Type-A ports (red)
6. 2 x USB 3.2 Gen 1 ports
7. 2 x USB 2.0/1.1 ports
8. 1 x HDMI port
9. 2 x RJ-45 ports
10. 1 x optical S/PDIF Out connector
11. 5 x audio jacks

LAN / Wireless

1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit//1 Gbit/100 Mbit) (LAN1)
1 x Intel^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)

Kích cỡ

E-ATX Form Factor; 30.5cm x 27.1cm
