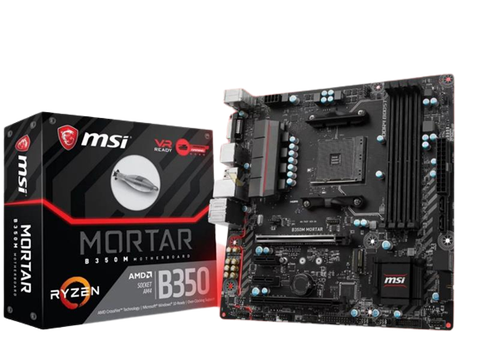

Mainboard Msi B350m Mortar Amd Ryzen Socket Am4 (618el)

Thông Số Kỹ Thuật
CPU
  • Supports AMD® RYZEN series processors and 7th Gen A-series/ Athlon™ processors for Socket AM4
Chipset
AMD® B350 Chipset
Bộ nhớ
• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz *
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
Card đồ họa tích hợp
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz*
• 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160@24Hz*
• 1 x DisplayPort, supports a maximum resolution of 4096x2160@60Hz*
Âm thanh
• Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio
LAN
1 x Realtek® 8111H Gigabit LAN controller
Khe cắm mở rộng
• 1 x PCIe 3.0 x16 slot
- RYZEN series processors support x16 mode
- 7th Gen A-series/ Athlon™ processors support x8 mode
• 1 x PCIe 2.0 x16 slot (supports x4 mode)
• 2 x PCIe 2.0 x1 slots*
Giao diện lưu trữ
• AMD® B350 Chipset
• 4 x SATA 6Gb/s ports*
• 1 x M.2 slot (Key M)
- M2_1 slot supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors) and SATA 6Gb/s 2242/ 2260 /2280 storage devices
• Supports RAID 0, RAID 1, RAID 10
Kết nối bảng phía sau
- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 Type-A ports
- 1 x DVI-D port
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x LAN (RJ45) port
- 3 x USB 3.1 Gen1 Type-A ports
- 1 x USB 3.1 Gen1 Type-C port
- 5 x OFC audio jacks
- 1 x Optical S/PDIF OUT connector
Hệ điều hành
1.     Support for Windows 10 64-bit
2.    Support for Windows 7 64-bit
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Hệ số khuôn
• 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
• Micro-ATX Form Factor
