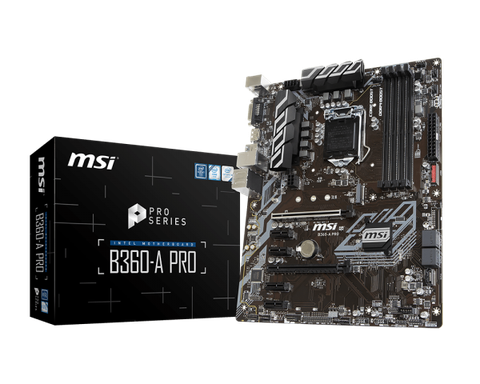

Mainboard Msi B360-a Pro Socket 1151v2 919kt

Thông Số Kỹ Thuật
PROCESSOR
Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors for Socket LGA1151
CHIPSET
Intel® B360 Chipset
MEMORY
·         4 x DDR4 memory slots, support up to 64GB
·         Supports DDR4 2666/ 2400/ 2133 MHz1
·         Dual channel memory architecture
·         Supports non-ECC, un-buffered memory
·         Supports Intel® Extreme Memory Profile (XMP)
·         Please refer to Compatibility for more information on compatible memor
SLOTS
·         2 x PCIe 3.0 x16 slots (supports x16/ x4 mode)
·         4 x PCIe 3.0 x1 slots
ONBOARD GRAPHICS
·         1 x DisplayPort 1.2, supports a maximum resolution of 4096x2304 @ 60Hz
·         1 x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz
MULTI-GPU
·         Supports 2-Way AMD® CrossFire™ Technology
STORAGE
Intel® B360 Chipset
·         5 x SATA 6Gb/s ports1
·         1 x M.2 slot (Key M)
·         Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices2
·         Intel® Optane™ Memory Read
·         SATA1 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.
·         Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website
USB
Intel® B360 Chipset
·         2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel)
·         4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)
·         6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
AUDIO
Realtek® ALC892 Codec
·         7.1-Channel High Definition Audio
LAN
·         1 x Intel® I219-V Gigabit LAN controller
INTERNAL CONNECTORS
·         1 x 24-pin ATX main power connector
·         1 x 8-pin ATX 12V power connector
·         1 x 6-pin ATX PCIe power connector
·         5 x SATA 6Gb/s connectors
·         1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
·         2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
·         1 x 4-pin CPU fan connector
·         1 x 4-pin water pump fan connector
·         5 x 4-pin system fan connectors
·         1 x Front panel audio connector
·         2 x Front panel connectors
·         1 x Series port connector
·         1 x Parallel port connector
·         1 x TPM module connector
·         1 x Thunderbolt Add-on Card Connector
·         1 x Chassis Intrusion connector
·         1 x Clear CMOS jumper
BACK PANEL PORTS
1.      PS/2 Combo Port
2.      DVI-D Port
3.      DisplayPort
4.      USB 3.1 Gen2 Type A
5.      LAN Port
6.      HD Audio Connectors
7.      USB 2.0 Port
8.      USB 3.1 Gen2 Type C
9.      USB 3.1 Gen1
DIMENSIONS
·         12 in. x 9.6 in. (30.4 cm x 24.3 cm)
·         ATX Form Factor
