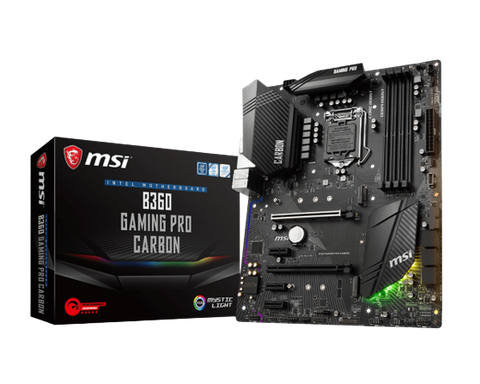

Mainboard Msi B360 Gaming Pro Carbon Socket 1151v2

Thông Số Kỹ Thuật
Tên gọi
MSI B360 GAMING PRO CARBON
CPU hỗ trợ
Intel® Socket 1151 for 8th Generation Core™ Processors
Chipset / Socket
Intel® B360
Bộ nhớ (RAM)
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB
- Supports Intel® Extreme Memory Profile (XMP) 2.0
Công nghệ đa GPU
• AMD® CrossFire™ Technology
Khe cắm mở rộng
• 2 x PCI Express 3.0 x16 Slos
• 3 x PCI Express 3.0 x1 Slots
LAN / Wireless
• Intel® I219-V Gigabit LAN controller
Âm thanh
• Realtek® ALC1220 Codec
Cổng kết nối (Internal)
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 1 x USB 3.1 Gen 2 Type-C connector
• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water pump fan connector
• 5 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x 5050 RGB LED strip 12V connector (JRGB1)
• 1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1)
• 1 x CORSAIR connector (JCORSAIR1)
• 1 x TPM module connector
• 1 x Chassis Intrusion co
Cổng kết nối (Back Panel)
• PS/2 Combo Port
• USB 3.1 Gen1
• LAN Port
• HD Audio Connectors
• USB 2.0 Port
• DisplayPort
• USB 3.1 Gen2 Type A + C
• HDMI Port
• USB 3.1 Gen1
• Optical S/PDIF OUT
Công nghệ độc quyền
• DDR4 Boost
• Turbo M.2
• PCI-E Steel Armor
• Heavy plated heatsinks
• Audio Boos
Phụ kiện đi kèm
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
Hệ điều hành khuyến nghị
• Windows® 10 64-bit
Chuẩn kích cỡ
• ATX Form Factor
