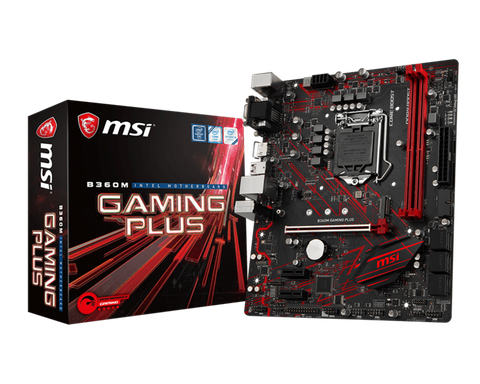

Mainboard Msi B360m Gaming Plus Socket Lga1151v2 _1118kt

Thông Số Kỹ Thuật
PROCESSOR
Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors for Socket LGA1151
CHIPSET
Intel® B360 Chipset
MEMORY
·         2 x DDR4 memory slots, support up to 32GB
·         Supports DDR4 2666/ 2400/ 2133 MHz1
·         Supports Dual-Channel mode
·         Supports non-ECC, un-buffered memory
·         Supports Intel® Extreme Memory Profile (XMP)
SLOTS
·         1 x PCIe 3.0 x16 slot
·         2 x PCIe 3.0 x1 slots
ONBOARD GRAPHICS
·         1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hzz
·         1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
·         1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz
STORAGE
Intel® B360 Chipset
·         6 x SATA 6Gb/s ports1
·         1 x M.2 slots (Key M)
·         Support up to PCIe 3.0 x4 and SATA 6Gb/s
·         Supports 2242/ 2260 /2280/ 22110 storage devices
·         Intel® Optane™ Memory Ready2
·         The SATA1 connector will be unavailable when an M.2 SATA SSD module has been installed in the M.2_1 slot.
·         Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB
Intel® B360 Chipset
·         6 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the back panel, 2 ports available through the internal USB connectors)
·         6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
AUDIO
Dual Realtek® ALC887 Codec
·         7.1-Channel High Definition Audio
LAN
·         1 x Intel I219-V Gigabit LAN controller
INTERNAL CONNECTORS
·         1 x 24-pin ATX main power connector
·         1 x 8-pin ATX 12V power connector
·         6 x SATA 6Gb/s connectors
·         1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
·         2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports
·         1 x 4-pin CPU fan connector
·         2 x 4-pin system fan connectors
·         1 x Front panel audio connector
·         1 x RGB LED connector
·         1 x Parallel port connector
·         1 x Serial port connector
·         2 x Front panel connectors
·         1 x TPM module connector
·         1 x Chassis Intrusion connector
·         1 x Clear CMOS jumper
BACK PANEL PORTS
1.      PS/2 Combo Port
2.      VGA
3.      LAN Port
4.      HD Audio Connectors
5.      USB 2.0 Port
6.     DVI-D
7.      HDMI
8.      USB 3.1 Gen1 Type A + C
9.      USB 3.1 Gen1
DIMENSIONS
·         9.6 in. x 8.1 in. (24.3 cm x 20.6 cm)
·         m-ATX Form Factor
