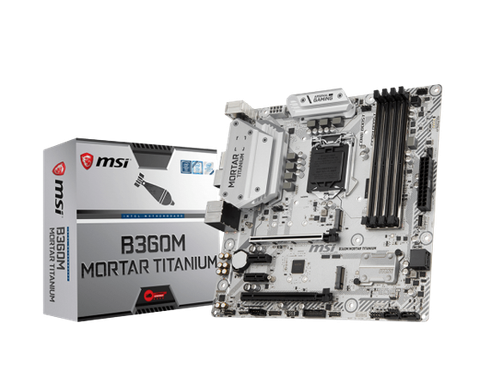

Mainboard Msi B360m Mortar Titanium Socket Lga1151v2

Thông Số Kỹ Thuật
PROCESSOR
Supports 8th Generation Intel® Core™ Processors, and Intel® Pentium® Gold and Celeron® Processors for Socket LGA1151
CHIPSET
Intel® B360 Chipset
MEMORY
·         4 x DDR4 memory slots, support up to 64GB
·         Supports DDR4 2666/ 2400/ 2133 MHz
·         Dual channel memory architecture
·         Supports non-ECC UDIMM memorye
·         Supports Intel® Extreme Memory Profile (XMP)
SLOTS
·         2 x PCIe 3.0 x16 slots (support x16/x4 modes)
·         2 x PCIe 3.0 x1 slots
ONBOARD GRAPHICS
·         1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
·         1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz
·         1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz
STORAGE
Intel® B360 Chipset
·         4 x SATA 6Gb/s ports
·         2 x M.2 slots (Key M)
·         M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices1
·         M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices2
·         Intel® Optane™ Memory Ready3
·         SATA2 port will be unavailable when installing SATA M.2 SSD in M2_1 slot.
·         M2_2 slot will be unavailable when installing a PCIe device in PCI_E4 slot.
·         Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB
Intel® B360 Chipset
·         3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A ports on the back panel, 1 Type-C internal connector)
·         2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connector
·         6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector)
AUDIO
Dual Realtek® ALC892 Codec
·         7.1-Channel High Definition Audio
·         Supports S/PDIF output
LAN
·         1 x Intel I219-V Gigabit LAN controller
INTERNAL CONNECTORS
·         1 x 24-pin ATX main power connector
·         1 x 8-pin ATX 12V power connector
·         4 x SATA 6Gb/s connectors
·         1 x USB 3.1 Gen2 Type-C port
·         1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
·         1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
·         1 x 4-pin CPU fan connector
·         3 x 4-pin system fan connectors
·         1 x Front panel audio connector
·         2 x Front panel connectors
·         1 x 5050 RGB LED strip 12V connector
·         1 x Thunderbolt add-on card connector
·         1 x TPM module connector
·         1 x Chassis Intrusion connector
·         1 x Clear CMOS jumper
BACK PANEL PORTS
1.      PS/2 Combo Port
2.      DisplayPort
3.      LAN Port
4.      USB 3.1 Gen2 Type A
5.      HD Audio Connectors
6.      USB 2.0 Port
7.      DVI-D Port
8.      HDMI Port
9.      USB 2.0 Port
10.  USB 3.1 Gen2 Type C
11.  Optical S/PDIF OUT
DIMENSIONS
·         9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
·         Micro-ATX Form Factor
