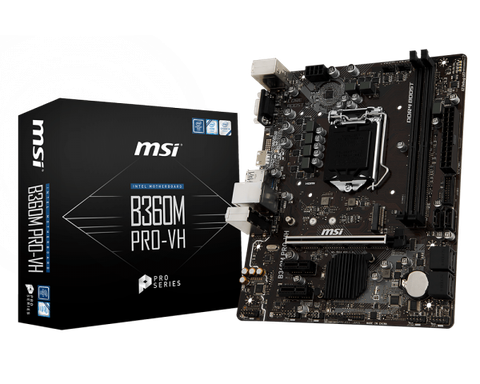

Mainboard Msi B360m Pro-vh Socket Lga1151v2 (618el)

Thông Số Kỹ Thuật
PROCESSOR
Supports 8th Gen Intel® Core™ processors, and Intel® Pentium® Gold and Celeron® processors for Socket LGA1151

CHIPSET
Intel® B360 Chipset

MEMORY
·         2 x DDR4 memory slots, support up to 32GB

o    Supports DDR4 2666/ 2400/ 2133 MHz

·         Dual channel memory architecture

·         Supports non-ECC, un-buffered memory

·         Supports Intel® Extreme Memory Profile (XMP)

SLOTS
·         1 x PCIe 3.0 x16 slot

·         2 x PCIe 3.0 x1 slots

ONBOARD GRAPHICS
·         1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz

·         1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz

STORAGE
Intel® B360 Chipset
·         6 x SATA 6Gb/s ports

·         1 x M.2 slot (Key M)

o    Supports up to PCIe 3.0 x4 and SATA 6Gb/s

o    Supports 2242/ 2260/ 2280 storage devices

o    Intel® Optane™ Memory Ready1

1.     Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB
Intel® B360 Chipset
·         6x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector)

·         6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

AUDIO
Realtek® ALC887 Codec
·         7.1-Channel High Definition Audio

LAN
·         1 x RTL8111H Gigabit LAN controller

INTERNAL CONNECTORS
·         1 x 24-pin ATX main power connector

·         1 x 8-pin ATX 12V power connector

·         1 x USB 3.1 Gen1 connector1 (supports additional 2 USB 3.1 Gen1 ports)

·         6 x SATA 6Gb/s connectors

·         1 x Clear CMOS jumper

·         2 x Front panel connectors

·         1 x Serial port connector

·         1 x Chassis Intrusion connector

·         2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

·         1 x Front panel audio connector

·         1 x 4-pin CPU fan connector

·         1 x 4-pin system fan connector

BACK PANEL PORTS
1.     PS/2 Combo Port

2.     VGA Port

3.     HDMI Port

4.     USB 3.1 Gen1

5.     LAN Port

6.     HD Audio Connectors

7.     USB 2.0 Port

8.     USB 3.1 Gen1

DIMENSIONS
·         8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)

·         m-ATX Form Factor
