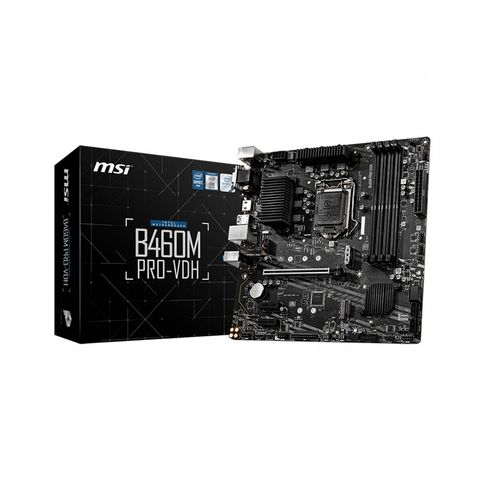

Mainboard Msi B460m Pro-vdh

Loại sản phẩm

Mainboard - Bo mạch chủ

Tên Hãng

MSI

Model

CPU hỗ trợ

Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket

Chipset

Intel® B460 Chipset

RAM hỗ trợ

• 4x DDR4 memory slots, support up to 128GB
• Intel^® Core^™ i7/i9
  • Supports up to DDR4 2933 MHz
• Intel^® Core^™ i5 (Below)
  • Supports up to DDR4 2666 MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

Khe cắm mở rộng

• 1x PCIe 3.0 x16 slot (from CPU)
• 2x PCIe x1 slots (from PCH)

Hỗ trợ đa card màn hình

• 1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz
• 1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz
• 1x VGA port, supports a maximum resolution of 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz

Lưu trữ

• 4x SATA 6Gb/s ports ¹
• 2x M.2 slots (Key M)
  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices ¹
  • M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
  • Intel^® Optane^™ Memory Ready ²
  • Supports Intel^® Smart Response Technology for Intel Core™ processors

1. SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
2. Before using Intel^® Optane^™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

• 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector)
• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

Âm Thanh

• 7.1-Channel High Definition Audio

LAN

1x Realtek^® RTL8111H Gigabit LAN Controller

Intel^® 3168NGW

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports 802.11 a/ b/ g/ n/ ac
• Supports Bluetooth^® 4.2

Cổng kết nối ( I/O bên trong)

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water pump connector
• 2x 4-pin system fan connectors
• 1x front panel audio connector
• 2x system panel connectors
• 1x parallel port connector
• 1x serial port connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x 4-pin RGB LED connector
• 1x 3-pin RAINBOW LED connector
• 1x TPM module connector

Cổng kết nối ( I/O Phía sau)

1. Keyboard / Mouse
2. VGA
3. LAN
4. USB 2.0
5. DVI-D
6. HDMI
7. USB 3.2 Gen 1 5Gbps Type-A
8. USB 3.2 Gen 1 5Gbps Type-A
9. Wireless / Bluetooth
10. Audio Connectors

Kích cỡ

• mATX Form Factor
• 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
