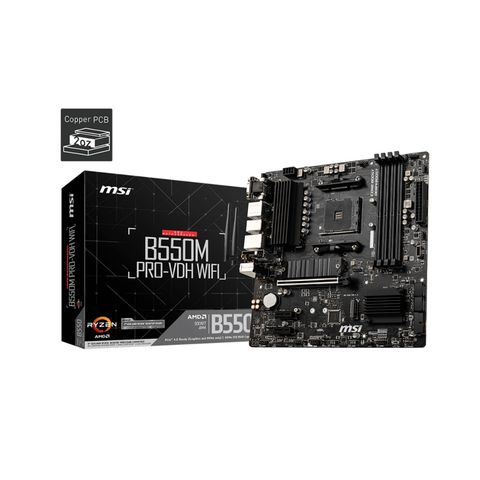

Mainboard MSI B550M PRO-VDH WIFI

Mainboard MSI B550M PRO-VDH WIFI

• Hỗ trợ bộ xử lý AMD Ryzen™ thế hệ thứ 3 và bộ xử lý AMD Ryzen™ trong tương lai với bản cập nhật BIOS
• Hỗ trợ bộ nhớ 128GB DDR4, lên đến 4400 (OC) MHz
• Trải nghiệm nhanh như chớp: PCIe 4.0, Lightning Gen4 x4 M.2 với M.2 Shield Frozr
• Giải pháp nhiệt cao cấp: Đệm 7W/mK, đệm nhiệt bổ sung và M.2 Shield Frozr được chế tạo cho hệ thống hiệu suất cao và hoạt động không ngừng
• Thiết kế mạnh mẽ: Core Boost, IC PWM kỹ thuật số, PCB đồng dày 2oz, Genie Creator, DDR4 Boost

THÔNG SỐ KỸ THUẬT

• Sản phẩm: Mainboard - Bo mạch chủ
• Tên Hãng: MSI
• Model: B550M PRO-VDH WIFI
• CPU hỗ trợ: Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update.

• Chipset: AMD B550 Chipset
• RAM hỗ trợ:
  • 4x DDR4 memory slots, support up to 128GB 1

  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

  • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE

  • 1DPC 1R max speed 4400 MHZ

  • 1DPC 2R max speed 3733 MHZ

  • 2DPC 1R max speed 3866 MHZ

  • 2DPC 2R max speed 3466 MHZ

  • Dual channel memory architecture

  • Supports non-ECC UDIMM memory

  • Supports ECC UDIMM memory

  • Supports un-buffered memory

• Khe cắm mở rộng

  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)

  • 2x PCIe 3.0 x1 slots

• Hình ảnh

  • 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz1

  • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz1

  • 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz1

  • Maximum shared memory of 16 GB

  • Available for the processor with integrated graphics.

• Lưu trữ

  • AMD B550 Chipset

  • 6x SATA 6Gb/s ports

  • 2x M.2 slots (Key M)

  • M2_1 slot (from AMD processor)

  • Supports PCIe 4.0/ 3.0 x4 1

  • Supports SATA 6Gb/s

  • Supports 2242/ 2260/ 2280 storage devices

  • M2_2 slot (from AMD B550 chipset)

  • Supports PCIe 3.0x4

  • Supports 2242/ 2260/ 2280 storage devices

  • The supported specification depends on installed processor.

• RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

• USB
  • AMD B550 Chipset

  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)

  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

  • AMD Processor

  • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

• Âm Thanh

  • Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio

• LAN: 1x Realtek® 8111HN Gigabit LAN controller

• Cổng kết nối ( I/O bên trong)

  • 1x 24-pin ATX main power connector

  • 1x 8-pin ATX 12V power connector

  • 4x SATA 6Gb/s connectors

  • 2x M.2 slots (M-Key)

  • 1x USB 3.2 Gen 1 5Gbps Type-C port

  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

  • 1x 4-pin CPU fan connector

  • 1x 4-pin water-pump fan connector

  • 3x 4-pin system fan connectors

  • 1x Front panel audio connector

  • 2x System panel connectors

  • 1x Serial port connector

  • 1x Chassis Intrusion connector

  • 2x 4-pin RGB LED connectors

  • 2x 3-pin RAINBOW LED connectors

  • 1xTPM module connector

  • 1x Clear CMOS jumper

• Cổng kết nối ( I/O Phía sau)

  • VGA
  • USB 3.2 Gen 1 5Gbps Type-A
  • Keyboard / Mouse
  • LAN
  • Flash BIOS Button
  • DisplayPort
  • HDMI
  • USB 2.0
  • USB 3.2 Gen 1 5Gbps Type-A
  • Wi-Fi Antenna connectors
  • 3x Audio jacks
  • B550M-PRO-VDH-WIFI-io

• Kích cỡ

  • Micro-ATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
