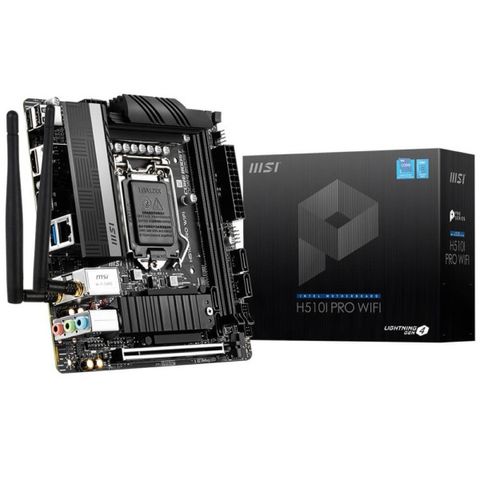

Mainboard Msi H510i Pro Wifi – Socket 1200

• Supports 10^th Gen Intel^® Core™ Processors, 11^th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors ¹
• Processor socket LGA1200

1. Please go to intel.com for compatibility information.

• 2x DDR4 memory slots, support up to 64GB¹
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR) ¹
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^® CPU (by JEDEC & POR) ¹
• Max frequency:
  • 1DPC 1R Max speed up to 3200+ MHz
  • 1DPC 2R Max speed up to 3200+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer www.msi.com for more information on compatible memory.

• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz ^1 2
• 1x DisplayPort 1.4 port, supports a maximum resolution of 5120×3200 60Hz ^1 2

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

• 1x PCIe x16 slot
  • Support up to PCIe 4.0 for 11th Gen Intel^® CPU
  • Support up to PCIe 3.0 for 10th Gen Intel^® CPU

Intel^® H510 Chipset

• 4x SATA 6Gb/s ports (from H510 chipset)
• 1x M.2 slot (from H510 chipset)
  • Support up to PCIe 3.0
  • Supports SATA 6Gb/s
  • Supports 2280 storage devices

Intel^® H510 Chipset

• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
• 4x USB 2.0 Type-A ports on the back panel

GL850G Hub

• 2x USB 2.0 ports available through the internal USB connector

Intel^® Wi-Fi 6 AX201

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• WiFi 6 pre certified
• Supports Bluetooth^® 5.1, FIPS, FISMA

Realtek^® ALC897 Codec

• 7.1-Channel High Definition Audio

• USB 2.0
• DisplayPort
• USB 2.0
• LAN port
• WIFI / Bluetooth
• Audio connector
• HDMI
• USB 3.2 Gen 1 5Gbps Type-A

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x M.2 slots (M-Key)
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 1x USB 2.0 connectors (supports additional 2 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 1x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector

• Mini-ITX Form Factor
• 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
