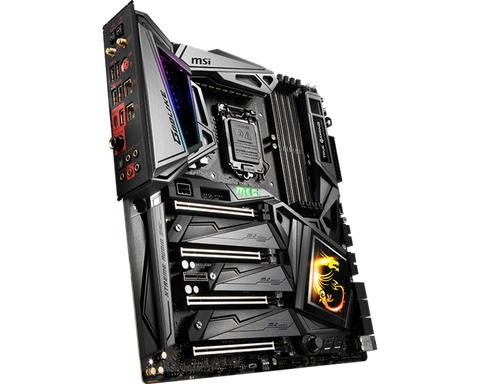

Mainboard Msi Meg Z390 Godlike Socket Lga 1151v2

Thông Số Kỹ Thuật

 PROCESSOR
Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
See supported processors
CHIPSET
Intel® Z390 Chipset
MEMORY
4 x DDR4 memory slots, support up to 64GB
Supports DDR4
Dual channel memory architecture
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Please refer to Compatibility for more information on compatible memory
See supported memory
SLOTS
4 x PCIe 3.0 x16 slots1
1 x PCIe 3.0 x1 slot
Please refer to page 31 for details
MULTI-GPU
Supports 2-Way NVIDIA® SLI™ Technology
Supports 4-Way AMD CrossFire™ Technology
STORAGE
Intel® Z390 Chipset
6 x SATA 6Gb/s ports1
3 x M.2 slots (Key M)1
M2_1 & M2_3 support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Intel® Optane™ Memory Ready
1 x U.2 port2
Supports PCIe 3.0 x4 NVMe storage
M.2_2 slot, U.2 port and SATA ports share the bandwidth.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID
Intel® Z390 Chipset
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID5 for M.2 PCIe storage devices
USB
Intel® Z390 Chipset
6 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel, 2 Type-C internal connectors)
4 x USB 2.0 (High-speed USB) ports through the internal USB connectors
ASMedia® ASM1042 Chipset
2 x USB 3.1 Gen1 (SuperSpeed USB) ports on the back panel
ASMedia® ASM1074 Chipset
4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
AUDIO
2 x Realtek® ALC1220 Codecs
7.1-Channel High Definition Audio
Supports S/PDIF output
ESS® E9018 Codec
Supports 6.3mm Gold-plated stereo headphone out
LAN
2 x KillerTM E2500 Gigabit LAN controller
WIRELESS
Killer™ 1550 Chipset
The Wireless module is pre-install in the M2_4 (Key-E) slot
Supports Wi-Fi 5, 2x2, Dual Band, (2.4GHz, 5GHz) up to 1.73 Gbps speed.
Supports Bluetooth® 5
INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX PCIe power connector
6 x SATA 6Gb/s connectors
3 x M.2 slots (M-Key)
1 x U.2 port
2 x USB 3.1 Gen2 Type-C ports
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
8 x 4-pin system fan connectors
1 x 3-pin Water Flow connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
2 x 2-pin Thermal Sensors connectors
1 x 4-pin RGB LED connector
2 x 3-pin RAINBOW LED connectors
1 x 3-pin CORSAIR LED connector
BACK PANEL PORTS
Clear CMOS Button
Wi-Fi /Bluetooth Antenna Connectors
PS/2 GAMING Device Port
Double Killer™ E2500 Gigabit LAN
HD Audio Connectors
BIOS FLASHBACK+ Button
USB 3.1 Gen1 Ports
USB 3.1 Gen2 Ports
USB 3.1 Gen2 Ports Type-A+C
6.3mm headphone
Optical S/PDIF-Out
MSI MEG Z390 GODLIKE back panel ports
DIMENSIONS
12 in. x 10.7 in. (30.5 cm x 27.2 cm)
E-ATX Form Factor
MOUNTING
9 mounting holes
OPERATING SYSTEM
Support for Windows® 10 64-bit
