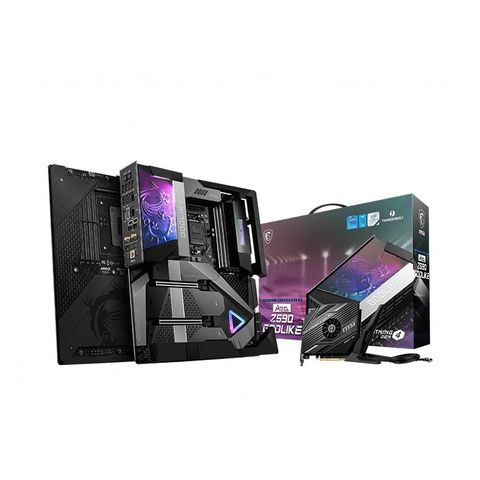

Mainboard Msi Meg Z590 Godlike

Tên Hãng

MSI

Model

MEG Z590 GODLIKE

CPU hỗ trợ

Intel

Chipset

Z590

RAM hỗ trợ

4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5600 MHz
1DPC 2R Max speed up to 4800+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Khe cắm mở rộng

3x PCIe x16 slots
Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4, x8+x8/x0/x4, x8+(x4+x4)/x0/x4
PCI_E1 & PCI_E2 slots (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel® CPU
PCI_E3 slot (From Z590 chipset)
Supports up to PCIe 3.0

Ổ cứng hỗ trợ

6x SATA 6Gb/s ports (From Z590 chipset)
4x M.2 slots (Key M)

Cổng kết nối (Internal)

1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x 6-pin ATX PCIE power connector
6x SATA 6Gb/s connectors
4x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
8x 4-pin system fan connectors
1x 3-pin Water Flow connector
1x Front panel audio connector
2x System panel connectors
1x Chassis intrusion connector
2x 2-pin Thermal sensors connectors
1x TPM module connector
1x Tuning controller connector

Cổng kết nối (Back Panel)

1 x 10G super LAN
1 x LAN port
1 x wifi/bluetooth
1 x Audio connector
2 x Mini DP
1 x DP
1 x Optical S/PDIF OUT
6 x USB 3.2 Gen 1 5Gbps Type A
2 x USB 3.2 Gen 2 10Gbps Type A
2 x thunderbolt 4 40Gbps Type c


LAN / Wireless

1x Aquantia® AQC107 10Gbps LAN controller
1x Intel® I225-V 2.5Gbps LAN controller

Kích cỡ

12 in. x 10.9 in. (30.5 cm x 27.7 cm)
E-ATX Form Factor
