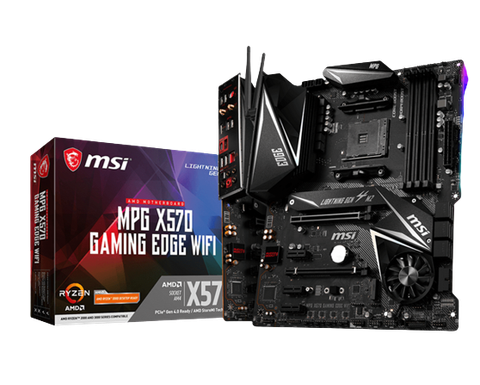

Mainboard Msi Mpg X570 Gaming Edge Wi-fi

Thông Số Kỹ Thuật

PROCESSOR
CHIPSET
AMD® X570 Chipset
MEMORY
•           4x DDR4 memory slots, support up to 128GB
o          s3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
o          2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE
•           Dual channel memory architecture
•           Supports non-ECC UDIMM memory
•           Supports ECC UDIMM memory (non-ECC mode)
•           Supports un-buffered memory
See supported memory
EXPANSION SLOTS
•           1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
o          3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
o          2nd Gen AMD Ryzen™ support PCIe 3.0 x16 mode
o          Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
•           1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
•           3x PCIe 3.0 x1 slots1
1.         PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.
2.         The speeds may vary for different devices
ONBOARD GRAPHICS
•           1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1
1.         Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors
2.         Maximum shared memory of 2048 MB
MULTI-GPU
•           Supports 2-Way AMD® CrossFire™ Technology
STORAGE
AMD® X570 Chipset
•           4x SATA 6Gb/s ports(SATA3-SATA6)
•           2x M.2 slots (Key M)
o          M2_1 slot (from AMD® Processor)
- Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
- Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
- Supports 2242/ 2260/ 2280/ 22110 storage devices
o          M2_2 slot (from AMD® X570 Chipset)
- Supports PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
ASMedia ASM1061
•           2x SATA 6Gb/s ports (SATA1, SATA2)
RAID
AMD® X570 Chipset
•           Supports RAID 0, RAID 1 and RAID 10
USB
AMD® X570 Chipset
•           2x USB 3.2 Gen 2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
•           4x USB 3.2 Gen 1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
•           6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD® Processor
•           2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
•           2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
AUDIO
Realtek® ALC1220 Codec
•           7.1-Channel High Definition Audio
•           Supports Optical S/PDIF output
LAN
•           1x Realtek® 8111H Gigabit LAN Controller
WIFI & BLUETOOTH
Intel® Dual Band Wireless-AC 3168
•           Supports 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps
•           Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2
•           The Wireless module is pre-install in the M2_3 (Key-E) slot
INTERNAL CONNECTORS
•           1x 24-pin ATX main power connector
•           1x 8-pin ATX 12V power connecto
•           1x 4-pin ATX 12V power connector
•           6x SATA 6Gb/s connectors
•           2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
•           2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
•           1x 4-pin CPU fan connector
•           1x 4-pin water-pump connector
•           4x 4-pin system fan connectors
•           1x Front panel audio connector
•           2x System panel connectors
•           1x TPM module connector
•           1x Serial port connector
•           1x Clear CMOS jumper
•           1x Chassis Intrusion connector
•           2x 4-pin RGB LED connectors
•           2x 3-pin RAINBOW LED connectors
•           4x EZ Debug LEDs
BACK PANEL PORTS
1.         Keyboard / Mouse
2.         Wireless / Bluetooth
3.         USB 3.2 Gen1 Type-A
4.         LAN
5.         Audio Connectors
6.         Flash BIOS Button
7.         USB 2.0
8.         HDMI
9.         USB 3.2 Gen2 Type-A + C
10.       USB 3.2 Gen2 Type-A
11.       Optical S/PDIF out
DIMENSIONS
•           12 in. x 9.6 in. (30.4 cm x 24.3 cm)
•           ATX Form Factor
MOUNTING
9 mounting holes
OPERATING SYSTEM
•           Support for Windows® 10 64-bit
