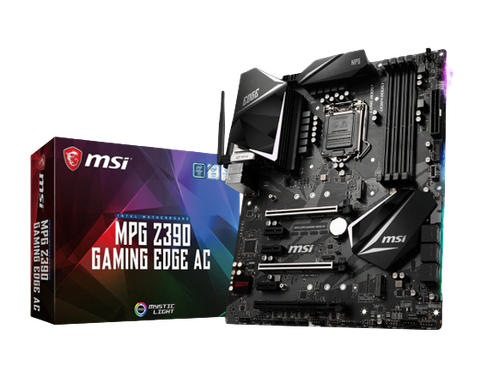

Mainboard Msi Mpg Z390 Gaming Edge Ac Socket Lga 1151v2

Thông Số Kỹ Thuật
PROCESSOR
Supports Intel® Core™ 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
See supported processors
CHIPSET
Intel® Z390 Chipset
MEMORY
4 x DDR4 memory slots, support up to 64GB
Supports DDR4
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
See supported memory
SLOTS
3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
3 x PCIe 3.0 x1 slots
ONBOARD GRAPHICS
1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@24Hzz
1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz
MULTI-GPU
Supports 2-Way NVIDIA® SLI™ Technology
Supports 3-Way AMD® CrossFire™ Technology
STORAGE
Intel® Z390 Chipset
6 x SATA 6Gb/s ports1
2 x M.2 slot (Key M)1
Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
Intel® Optane™ Memory Ready2
M.2 slots and SATA ports share the bandwidth.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID
Intel® Z390 Chipset
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 for M.2 PCIe storage devices
USB
Intel® Z390 Chipset
3x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A ports on the back panel, 1 Type-C internal connector)
6x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
AUDIO
Realtek® ALC1220P Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN
1 x Intel® I219-V Gigabit LAN controller
WIFI & BLUETOOTH
Intel® Wireless-AC 9462 card
Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz up to 433 Mbps
Supports Bluetooth® 2.1, 2.1+EDR, 3.0,4.0, 5
INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
1 x USB 3.1 Gen2 Type-C port
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
5 x 4-pin system fan connectors
1 x Serial port connector
1 x Front panel audio connector
2 x System panel connectors
1 x Thunderbolt Add-on Card Connector
1 x Chassis Intrusion connector
1 x TPM module connector
2 x 4-pin RGB LED connectors
1 x 3-pin RAINBOW LED connector
1 x 3-pin CORSAIR LED connector
BACK PANEL PORTS
PS/2 Combo Port
LAN
Wireless / Bluetooth
HD Audio Connectors
USB 2.0
DisplayPort
HDMI
USB 3.1 Gen2 Type-A + C
USB 3.1 Gen1
Optical S/PDIF out
MSI MPG Z390 GAMING EDGE AC back panel ports
DIMENSIONS
9.6 in. x 12 in. (24.3 cm x 30.4 cm)
ATX Form Factor
MOUNTING
9 mounting holes
OPERATING SYSTEM
Support for Windows® 10 64-bit
