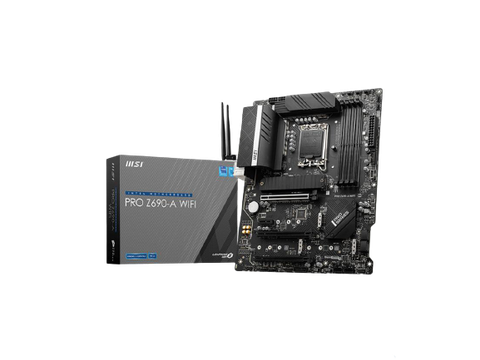

Mainboard Msi Pro Z690-a Wifi Ddr5

Thông Số Kỹ Thuật
CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset    Intel® Z690 Chipset
Memory    4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
Graphics
1 x DisplayPort**
1 x HDMI® port***
>Expansion Slots
Intel® 12th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel® Z690 Chipset**
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x4 slot
2 x PCIe 3.0 x1 slots
Storage
Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
Intel® 12th Gen processors support PCIe 4.0 x4 mode
Intel® Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Intel® 2.5Gb Ethernet, Intel Wifi6
TUF LANGuard
USB
Rear USB:Total 8 ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)
Front USB:Total 7 ports

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Rear optical S/PDIF out port
Premium audio capacitors
Dedicated audio PCB layers
Audio Cover
Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)
1 x DisplayPort
1 x HDMI® port
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Intrernal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header
Special Features
ASUS TUF PROTECTION
DIGI+ VRM (- Digital power design with DrMOS)
Enhanced DRAM Overcurrent Protection
ESD Guards
TUF LANGuard
Overvoltage Protection
Safeslot
Stainless-Steel Back I/O
ASUS Q-Design
M.2 Q-Latch
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
M.2 heatsink
VRM heatsink design
ASUS EZ DIY
CPU Socket lever protector
ProCool
Pre-mounted I/O shield
SafeDIMM
AURA Sync
AURA RGB header
Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
AURA Creator
AURA Sync
Fan Xpert 4
Two-Way AI Noise Cancelation
AI Suite 3
Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
BIOS    192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
2 x M.2 Rubber Packages
1 x M.2 SSD screw package
1 x TUF GAMING sticker
Installation Media
1 x Support DVD
Documentation
1 x TUF Certification card
1 x User guide
Form Factor
ATX
30.5cm x 24.4cm
