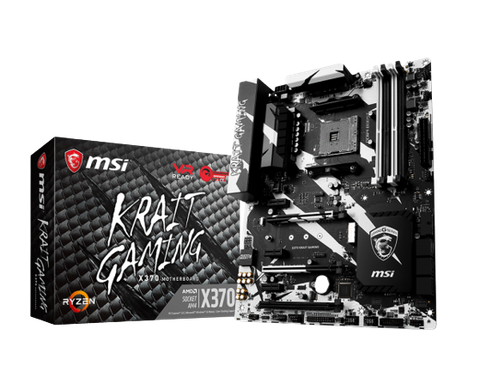

Mainboard Msi X370 Krait Gaming Amd® Ryzen Socket Am4

Thông Số Kỹ Thuật
CPU
  Supports AMD® RYZEN series processors and 7th Gen A-series/ Athlon™ processors for Socket AM4
Chipset
AMD® X370 Chipset
Bộ nhớ
• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz *
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
Card đồ họa tích hợp
• 1 DVI-D port, supporting a maximum resolution of 1920x1200@60Hz, 1600x1200@60Hz*
• 1 HDMI™ 1.4 port, supports a maximum resolution of 2560x1600@60Hz*
Âm thanh
• Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio
LAN
1 x Realtek® 8111H Gigabit LAN controller
Khe cắm mở rộng
• 2 x PCIe 3.0 x16 slots (PCIE_2, PCIE_4)
- RYZEN series processors support x16/x0, x8/x8 mode
- 7th Gen A-series/ Athlon™ processors support x8/x0 mode
• 1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)*
• 3 x PCIe 2.0 x1 slots
Giao diện lưu trữ
• AMD® X370 Chipset
• 6x SATA 6Gb/s ports
• 1x M.2 slots (Key M)
- Supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
• Supports RAID 0, RAID 1 and RAID 10
Kết nối bảng phía sau
- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 Type-A ports
- 1 x DVI-D port
- 1 x HDMI™ 1.4 port
- 1 x LAN (RJ45) port
- 4 x USB 3.1 Gen1 Type-A ports
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 6 x audio jacks
Hệ điều hành
1.     Support for Windows 10 64-bit
2.     Support for Windows 7 64-bit
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Hệ số khuôn
• 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
• ATX Form Factor
