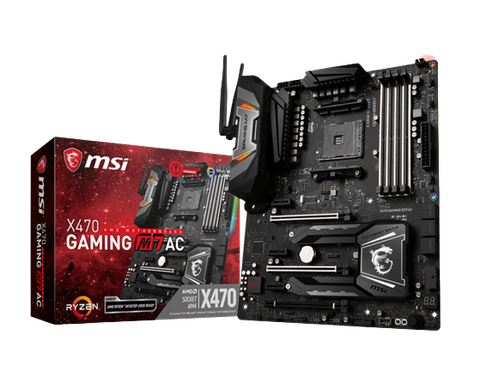

Mainboard Msi X470 Gaming M7 Ac Amd® Ryzen Socket Am4

Thông Số Kỹ Thuật

PROCESSOR
Supports AMD® RYZEN™ Desktop processors and A-series/ Athlon™ Processors for Socket AM4
CHIPSET
AMD® X470 Chipset
MEMORY
·         4 x DDR4 memory slots, support up to 64GB
o    Supports DDR4 1866/ 2133/ 2400/ 2667 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600 Mhz by A-XMP OC MODE1
·         Dual channel memory architecture
·         Supports non-ECC UDIMM memory
·         Supports ECC UDIMM memory (non-ECC mode)
SLOTS
·         2 x PCIe 3.0 x16 slots (PCIE_2, PCIE_4)
o    Ryzen™ Desktop Processors support x16/x0, x8/x8 mod
o    Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors support x8/ x0 mode
·         1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)1
·         3 x PCIe 2.0 x1 slots
1.      PCI_E3 slot will be unavailable when installing PCIe card in PCI_E5 slot
2.     PCI_E6 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.
MULTI-GPU
·         Ryzen™ Desktop Processors
o    Supports 2-Way NVIDIA® SLI™ Technology
o    Supports 3-Way AMD® CrossFire™ Technology
·         Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors
o    Supports 2-Way AMD® CrossFire™ Technology
STORAGE
AMD® X470 Chipset
·         6 x SATA 6Gb/s ports
·         2 x M.2 ports (Key M) 1
o    M2_1 slot (from AMD® processor) supports PCIe 3.0 x4 (Ryzen™ Desktop Processors ) or PCIe 3.0 x2 (A-series/ Athlon™ Processors) 2242/ 2260 /2280 storage devices

o    M2_2 slot (from AMD® X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage device
1.      SATA3 port will be unavailable when installing SATA M.2 SSD in M2_2 slot.
2.      PCI_E6 slot will be unavailable when installing PCIe M.2 SSD in M2_2 slot
RAID
AMD® X470 Chipset
·         Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB
ASMedia® ASM1143 Chipset
·         1x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port through the internal USB connector
AMD® X470 Chipset
·         1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
·         1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
·         4 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB connectors
·         6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
AMD® CPU
·         4x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel
AUDIO
Dual Realtek® ALC1220 Codec
·         7.1-Channel High Definition Audio
·         Supports S/PDIF output
LAN
·         1 x Killer™ E2500 Gigabit LAN controller
WIRELESS LAN & BLUETOOTH®
Intel® Dual Band Wireless-AC 8265 card
·         The Wireless card is pre-install in the M2_3 (M.2 Key E) slot.
·         Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
·         Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2
INTERNAL CONNECTORS
·         1x 24-pin ATX 12V power connector
·         2x 8-pin ATX 12V power connectors
·         6x SATA 6Gb/s connector
·         2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
·         2x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
·         1x USB 3.1 Gen2 connector (supports additional 1 USB 3.1 Gen2 Type C port)
·         1x 4-pin CPU fan connector
·         1x 4-pin PUMP fan connector (supports up to 2A)
·         4x 4-pin system fan connectors
·         2x 5050 RGB LED strip 12V connectors
·         1x WS2812B Individually Addressable RGB LED strip 5V connector
·         1x CORSAIR connector y1x TPM module connector
·         1x Front panel audio connector
·         2x System panel connectors y1x Chassis Intrusion connector
·         1x Clear CMOS jumper
·         1x GAME BOOST knob
·         1x Power button
·         1x Reset button
·         1x 2-Digit Debug Code LED
BACK PANEL PORTS
1.     Clear CMOS Button
2.     PS/2 GAMING Device Port
3.     USB 3.1 Gen1 Ports
4.     Intel® WiFi/ Bluetooth Module
5.     USB 3.1 Gen1 Ports
6.     Killer™ E2500 Gigabit LAN
7.     HD Audio Connectors
8.     BIOS FLASHBACK+
9.     USB 2.0 Port
10.                        USB 3.1 Gen2 Type A+C
11.                        Optical S/PDIF-Out
DIMENSIONS
·         12 in. x 9.6 in. (30.4 cm x 24.4 cm)
·         ATX Form Factor
