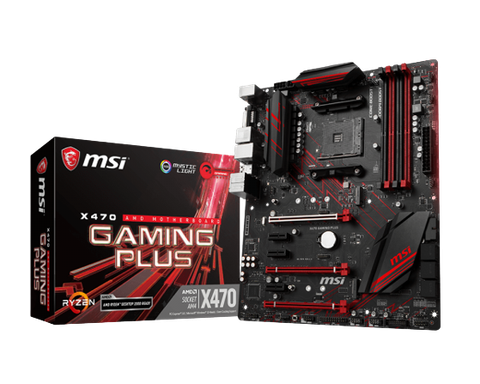

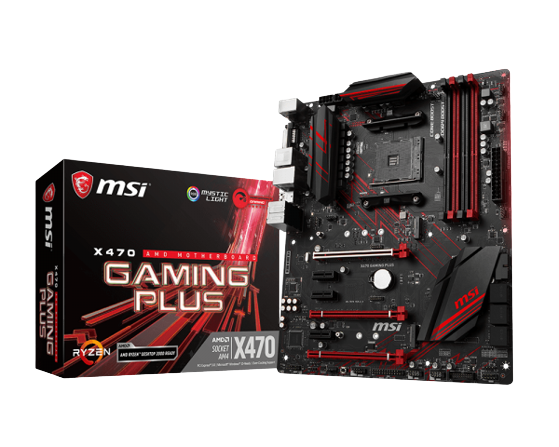

Mainboard Msi X470 Gaming Plus Amd® Ryzen Socket Am4 Atx

Thông Số Kỹ Thuật
Hãng sản xuất    MSI
CPU hỗ trợ    Supports AMD® Ryzen™ Desktop Processors and AMD® A-Series/Athlon™ Processors for Socket AM4
Chipset    AMD X470
Bộ nhớ trong
4 x DDR4 memory slots, support up to 64GB
Supports DDR4 1866/ 2133/ 2400/ 2667 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 Mhz by A-XMP OC MODE1
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory
A-series/ Athlon™ processors support up to 2400 MHz. And the supporting frequency of memory varies with installed processor.
Multi GPU
Ryzen™ Desktop Processors
Supports 3-Way AMD® CrossFire™ Technology
Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors
Supports 2-Way AMD® CrossFire™ Technology
Âm thanh
Realtek® ALC892 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Khe mở rộng
2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_4)
Ryzen™ Desktop Processors support x16/x0, x8/x8 mode
Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors support x8/x0 mode
1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)1
3 x PCIe 2.0 x1 slots
PCI_E6 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.
Chuẩn lưu trữ
AMD® X470 Chipset
6 x SATA 6Gb/s ports
2 x M.2 ports (Key M)1
M2_1 slot (from AMD® processor) supports PCIe 3.0 x4 (Ryzen™ Desktop Processors ) or PCIe 3.0 x2 (A-series/ Athlon™ Processors) 2242/ 2260 /2280/ 22110 storage devices
M2_2 slot (from AMD® X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
SATA1 port will be unavailable when installing SATA M.2 SSD in M2_2 slot.
PCI_E6 slot will be unavailable when installing PCIe M.2 SSD in M2_2 slot.
Mạng
1 x Realtek® 8111H Gigabit LAN controller
Cổng I / O phía sau
PS/2 Combo Port
USB 3.1 Gen1
LAN Port
HD Audio Connectors
USB 2.0 Port
DVI-D Port
HDMI Port
USB 3.1 Gen1
USB 3.1 Gen2
Optical S/PDIF OUT
Cổng I/O ở trong
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin PUMP fan connector (supports up to 2A)
4 x 4-pin system fan connectors
1 x Serial port connector
1 x Parallel port connector
2 x 5050 RGB LED strip 12V connectors
1 x TPM module connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x Clear CMOS button
Kích thước
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor
