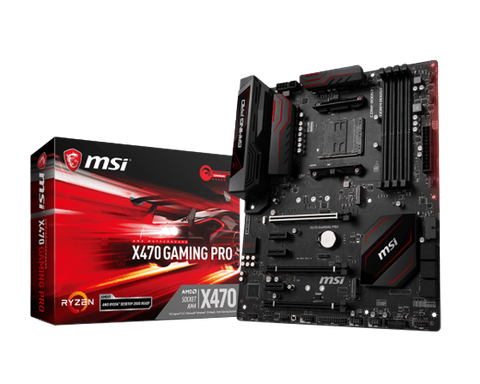

Mainboard Msi X470 Gaming Pro Amd® Ryzen Socket Am4

Thông Số Kỹ Thuật
 PROCESSOR
Supports AMD® Ryzen™ Desktop Processors and AMD® A-Series/Athlon™ Processors for Socket AM4
CHIPSET
AMD® X470 Chipset
MEMORY
·         4 x DDR4 memory slots, support up to 64GB
o    Supports DDR4
·         Dual channel memory architecture
·         Supports non-ECC UDIMM memory
·         Supports ECC UDIMM memory
SLOTS
·         2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_4)
o    Ryzen™ Desktop Processors support x16/x0, x8/x8 mode
o    Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors support x8/x0 mode
·         1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)1
·         3 x PCIe 2.0 x1 slots
MULTI-GPU
·         Ryzen™ Desktop Processors
o    Supports 3-Way AMD® CrossFire™ Technology
·         Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors
o    Supports 2-Way AMD® CrossFire™ Technology
STORAGE
AMD® X470 Chipset
·         6 x SATA 6Gb/s ports
·         2 x M.2 ports (Key M)1
o    M2_1 slot (from AMD® processor) supports PCIe 3.0 x4 (Ryzen™ Desktop Processors ) or PCIe 3.0 x2 (A-series/ Athlon™ Processors) 2242/ 2260 /2280/ 22110 storage devices
o    M2_2 slot (from AMD® X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
RAID
AMD® X470 Chipset
·         Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
ONBOARD GRAPHICS
·         1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
·         1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz1
USB
ASMedia® ASM1143 Chipset
·         2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
AMD® X470 Chipset
·         4 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB connectors
·         6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
AMD® CPU
·         4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel
AUDIO
Realtek® ALC892 Codec
·         7.1-Channel High Definition Audio
·         Supports S/PDIF output
LAN
·         1 x Realtek® 8111H Gigabit LAN controller
INTERNAL CONNECTORS
·         1 x 24-pin ATX main power connector
·         1 x 8-pin ATX 12V power connector
·         1 x 4-pin ATX 12V power connector
·         6 x SATA 6Gb/s connectors
·         2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
·         2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
·         1 x 4-pin CPU fan connector
·         1 x 4-pin PUMP fan connector (supports up to 2A)
·         4 x 4-pin system fan connectors
·         1 x Serial port connector
·         1 x Parallel port connector
·         2 x 5050 RGB LED strip 12V connectors
·         1 x TPM module connector
·         1 x Front panel audio connector
·         2 x System panel connectors
·         1 x Chassis Intrusion connector
·         1 x Clear CMOS jumper
·         1 x Clear CMOS button
BACK PANEL PORTS
1.     PS/2 Combo Port
2.     USB 3.1 Gen1
3.     LAN Port
4.     HD Audio Connectors
5.     USB 2.0 Port
6.     DVI-D Port
7.     HDMI Port
8.     USB 3.1 Gen1
9.     USB 3.1 Gen2
10.            Optical S/PDIF OUT
DIMENSIONS
·         12 in. x 9.6 in. (30.5 cm x 24.4 cm)
·         ATX Form Factor
