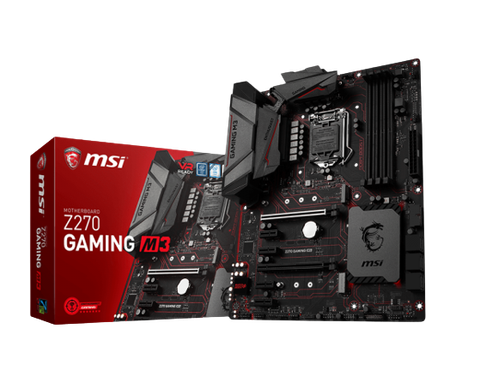

Mainboard Msi Z270 Gaming M3 Socket Lga1151

Thông Số Kỹ Thuật
CPU
• Supports 6th/7th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
• Intel® Z270 Chipset
• 4 x DDR4 memory slots, support up to 64GB
- 7th Gen processors support DDR4
- 6th Gen processors support DDR4
• Dual channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP)
• 2 x PCIe 3.0 x16 slots (supports x16/x4 mode)
• 4 x PCIe 3.0 x1 slots
• Supports 2-Way AMD® CrossFire™ Technology
• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz(7th CPU), 4096x2160@24Hz(6th CPU), 2560x1600@60Hz
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
• Intel® Z270 Chipset
• 6 x SATA 6Gb/s ports
• 2x M.2 slots (Key M)
- Support up to PCIe 3.0 x4 and SATA 6Gb/s
- Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host
Card** - M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
- M2_2 slot supports 2242/ 2260 /2280 storage devices
- Intel® Optane™ Memory Ready for all M.2 slots
• Supports Intel® Smart Response Technology for Intel Core™ processors (optional)
• Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID1 for M.2 PCIe storage devices*
• ASMedia® ASM2142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
• Intel® Z270 Chipset
- 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connector)
• Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
• 1 x Killer™ E2500 Gigabit LAN controller
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water pump fan connector
- 4 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x LED connector
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial connector
- 1 x Clear CMOS jumper
- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 Type-A ports
- 1 x DVI-D port
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 4 x USB 3.1 Gen1 Type-A ports (optional)
- 1 x HDMI™ port
- 1 x LAN (RJ45) port
- 5 x OFC audio jacks
- 1 x Optical S/PDIF OUT connector
• 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
• ATX Form Factor
