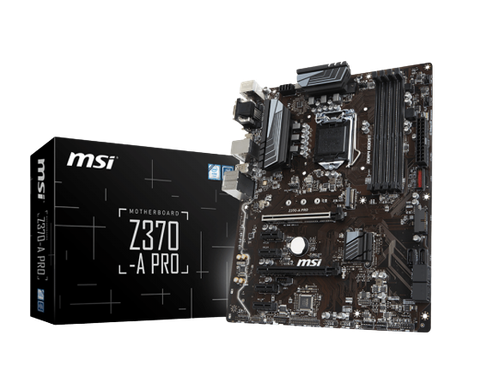

Mainboard Msi Z370-a Pro Socket Lga1151v2

Thông Số Kỹ Thuật
PROCESSOR
Supports 8th Gen Intel® Core™ processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
CHIPSET
Intel® Z370 Chipset
MEMORY
·         4 x DDR4 memory slots, support up to 64GB
o    Supports 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2667/ 2400/ 2133 MHz
·         Dual channel memory architecture
·         Supports non-ECC, un-buffered memory
·         Supports Intel® Extreme Memory Profile (XMP)
SLOTS
·         1 x PCIe 3.0 x16 slot (PCI_E1, supports x16 mode)
·         1 x PCIe 3.0 x16 slot (PCI_E4, supports x4 mode)
·         4 x PCIe 3.0 x1 slots
ONBOARD GRAPHICS
·         1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
·         1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
·         1x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz
MULTI-GPU
·         Supports 2-Way AMD® CrossFire™ Technology
STORAGE
Intel® Z370 Chipset
·         6 x SATA 6Gb/s ports1
·         1 x M.2 slot (Key M)
o    Support up to PCIe 3.0 x4 and SATA 6Gb/s
o    Supports 2242/ 2260 /2280/ 22110 storage devices
o    M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
o    Intel® Optane™ Memory Ready2
·         Supports Intel® Smart Response Technology for Intel Core™ processors
1.     The SATA1 port will become unavailable when M.2 SATA SSD has been installed in M.2 slot.
2.     Please refer to page 87 for Intel® Optane™ Memory Configuration.
RAID
Intel® Z370 Chipset
·         Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
Intel® Z370 Chipset
·         8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
·         6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
AUDIO
Realtek® ALC892 Codec
·         7.1-Channel High Definition Audio
LAN
·         1 x RTL8111H Gigabit LAN controller
INTERNAL CONNECTORS
·         1 x 24-pin ATX main power connector
·         1 x 8-pin ATX 12V power connector
·         6 x SATA 6Gb/s connectors
·         2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
·         2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
·         1 x 4-pin CPU fan connector
·         1 x 4-pin water pump fan connector
·         4 x 4-pin system fan connectors
·         1 x Front panel audio connector
·         2 x Front panel connectors
·         1 x TPM module connector
·         1 x Chassis Intrusion connector
·         1 x Serial port connector
·         1 x Parallel port connector
·         1 x Thunderbolt Add-on Card Connector
·         1 x Clear CMOS jumper
BACK PANEL PORTS
1.     PS/2 Combo Port
2.     VGA Port
3.     LAN Port
4.     USB 2.0
5.     HD Audio Connectors
6.     USB 3.1 Gen 1
7.     DVI-D Port
8.     DisplayPort
9.     USB 3.1 Gen 1
DIMENSIONS
·         12.0 in. x 9.6 in. (30.5 cm x 24.4 cm)
·         ATX Form Factor
