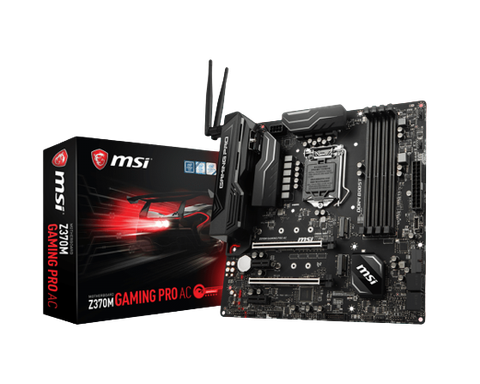

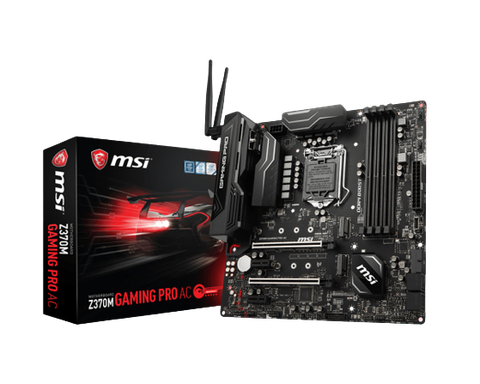

Mainboard Msi Z370m Gaming Pro Ac Socket 11151v2

Thông Số Kỹ Thuật
Tên gọi
Z370M GAMING PRO AC
Chipset / Socket
Intel® Z370 Express Chipset / Intel Socket 11151 (Version 2)
CPU hỗ trợ
8th Generation Intel® Core™ Processors, and Intel® Pentium® and Celeron® Processors
Bộ nhớ (RAM)
• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
Khe cắm mở rộng
• 2 x PCIe 3.0 x16 slots (support x16/x0, x8/x8 modes)
• 2 x PCIe 3.0 x1 slots
• 4 x SATA 6Gb/s ports*
• 2 x M.2 slots (Key M)
- Support up to PCIe 3.0 x4 and SATA 6Gb/s
- M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
- M2_2 slot supports 2242/ 2260 /2280 storage devices
- Intel® Optane™ Memory Ready for all M.2 slots*
• Supports Intel® Smart Response Technology for Intel Core™ processors
Âm thanh
• Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
LAN / Wireless
• Intel® Dual Band Wireless-AC 8265 card
- The Wireless module is pre-install in the M2_3 (KeyE) slot.
- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
- Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2
• 1 x Intel I219-V Gigabit LAN controller
Cổng kết nối
- 2 x antenna connectors
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x DisplayPort port
- 1 x HDMI™ port
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 4 x USB 3.1 Gen1 Type-A ports
- 1 x LAN (RJ45) port
- 5 x OFC audio jacks
- 1 x Optical S/PDIF OUT connector
Chuẩn kích cỡ
• 9.6in. x 9.6 in. (24.4 cm x 24.4 cm)
• m-ATX Form Factor
Đa GPU
• Supports 2-Way NVIDIA® SLI™ Technology
• Supports 2-Way AMD® CrossFire™ Technology
