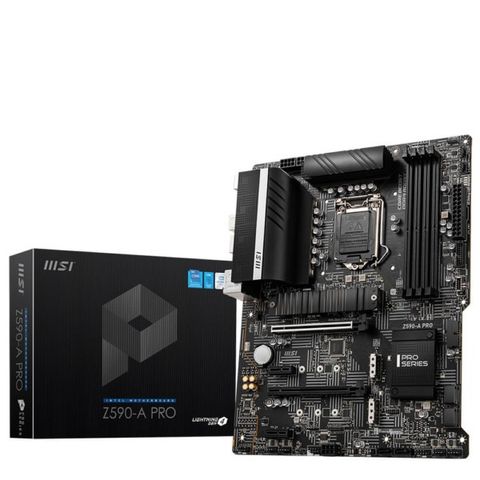

Mainboard Msi Z590-a Pro – Socket 1200
- Tình trạng: Mới 100%
- Bảo hành: 36 tháng
- Xuất xứ: Chính hãng
- Thương hiệu: MSI
- Giá trên đã bao gồm VAT.
THÔNG TIN SẢN PHẨM
PROCESSOR | - Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1
- Processor socket LGA1200
|
CHIPSET | |
MEMORY | - 4x DDR4 memory slots, support up to 128GB 1
- Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5333 MHz
- 1DPC 2R Max speed up to 4700+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
|
EXPANSION SLOT | - 2x PCIe x16 slots
- Support x16/ x4
- PCI_E1 (from CPU)
- Supports up to PCIe 4.0 for 11th Gen Intel® CPU
- Supports up to PCIe 3.0 for 10th Gen Intel® CPU
- PCI_E3 (from Z590 chipset)
- 2x PCIe 3.0 x1 slots (from Z590 chipset)
|
MULTI-GPU | - Supports 2-Way AMD® CrossFire™ Technology
|
ONBOARD GRAPHICS | - 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2
- 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1 / 2
- Available only on processors featuring integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
|
STORAGE | - 6x SATA 6Gb/s ports (from Z590 chipset)
- 3x M.2 slots (Key M)
- M2_1 slot (from CPU) 1
- Available only on 11th Gen Intel® CPU
- Supports up to PCIe 4.0×4
- Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_21, M2_32 slots (from Z590 chipset)
- Support up to PCIe 3.0×4
- Support up to SATA 6Gb/s
- Support 2242/ 2260/ 2280 storage devices
- Intel® Optane™ Memory Ready 3
- Support Intel® Smart Response Technology for Intel Core™ processors
- SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
- SATA5 & SATA 6 will be unavailable when installing M.2 SSD in the M2_3 slot.
- Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
|
RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
|
USB | Intel® Z590 Chipset - 1x USB 3.2 Gen 2×2 20Gbps Type-C port on the back panel
- 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
- 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors)
Hub-GL850G - 4x USB 2.0 Type-A ports on the back panel
- 4x USB 2.0 ports are available through the internal USB 2.0 connectors
|
AUDIO | Realtek® ALC897 Codec - 7.1-Channel High Definition Audio
|
LAN | - 1x Intel® I225-V 2.5Gbps LAN controller
|
INTERNAL CONNECTORS | - 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 1x 4-pin ATX 12V power connector
- 1x 6-pin ATX PCIe power connector
- 6x SATA 6Gb/s connectors
- 3x M.2 slots (M-Key)
- 1x USB 3.2 Gen 2 10Gbps Type-C port
- 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 6x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x Clear CMOS jumper
- 1x TPM module connector
- 1x Serial port connector
- 1x Tuning controller connector
- 1x TBT connector (Supports RTD3)
|
BACK PANEL PORTS | - Keyboard / Mouse
- DisplayPort
- USB 2.0
- LAN port
- Audio connector
- Flash BIOS Button
- USB 2.0
- HDMI
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 2×2 20Gbps Type-C
- USB 3.2 Gen 2 10Gbps Type-A
|
LED FEATURE | - 1x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
- 4x EZ Debug LED
|
DIMENSIONS | - ATX Form Factor
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
|
OPERATING SYSTEM | - Support for Windows® 10 64-bit
|
