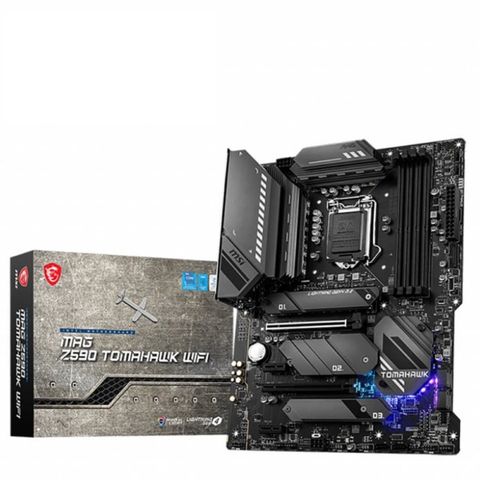

Mainboard Msi Z590 Tomahawk Wifi – Socket 1200

• Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1
• Processor socket LGA1200

• Intel® Z590 Chipset

• 4x DDR4 memory slots, support up to 128GB ¹
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR)
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^® CPU (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 5333 MHz
    • 1DPC 2R Max speed up to 4700+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

• 2x PCIe x16 slots
  • 1x PCIe 3.0 x16 slot (from CPU)
    • Support up to PCIe 4.0 for 11th Gen Intel^® CPU
    • Support up to PCIe 3.0 for 10th Gen Intel^® CPU
  • PCI_E3 (From Z590 chipset)
    • Support up to PCIe 3.0 x4
• 2x PCIe 3.0 x1 slots (From Z590 chipset)

• Supports 2-Way AMD^® CrossFire^™ Technology

• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz ¹ / ²
• 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz ¹ / ²

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

• 6x SATA 6Gb/s ports (From Z590 chipset) ¹
• 3x M.2 slots (Key M)
  • M2_1 slot (From CPU)
    • Available only on 11th Gen Intel^® CPU
    • Supports up to PCIe 4.0 x4
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2¹ & M2_3 ² slot (From Z590 chipset)
    • Supports up to PCIe 3.0 x4
    • Supports SATA up to 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
    • Intel^® Optane™ Memory Ready ³
  • Supports Intel^® Smart Response Technology for Intel Core™ processors

1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
2. SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot.
3. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

Intel^® Z590 Chipset

• 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
• 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
• 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector)
• 1x USB 2.0 Type-A port on the back panel

Hub-GL850G

• 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)

Realtek^® ALC4080 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

• 1x Intel^® I225-V 2.5Gbps LAN controller

• 1x Intel^® Wi-Fi 6E AX210
• 1x Intel^® The Wireless module is pre-installed in the M.2 (Key-E slot)
• Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz ¹(160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth^® 5.2², FIPS, FISMA

1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
2. Bluetooth 5.2 will be ready in WIN10 21H1.

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 1x 6-pin PCIE power connector
• 6x SATA 6Gb/s connectors
• 3x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 1x Clear CMOS jumper
• 1x TBT connector (supports RTD3)
• 1x Tuning Controller connector

1. DisplayPort
2. USB 2.0
3. USB 3.2 Gen 1 5Gbps Type-A
4. 2.5G LAN Port
5. Wi-Fi / Bluetooth Antenna
6. HD Audio Connectors
7. HDMI
8. Flash BIOS Button
9. USB 3.2 Gen 1 5Gbps Type-A
10. USB 3.2 Gen 2 10Gbps Type-A
11. USB 3.2 Gen 2×2 20Gbps Type-C
12. Optical S/PDIF OUT

• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

• Support for Windows^® 10 64-bit
