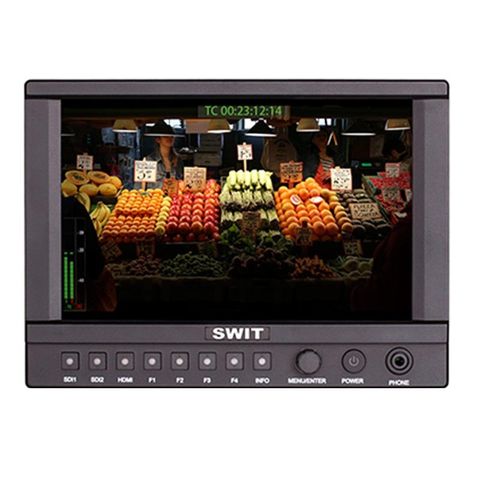

Màn Hình Ghi Hình Swit S-1073h 7-inch

7-inch Full HD LCD

TFT panel with LED backlight

The S-1073H adopts a 7-inch LCD panel with LED backlight, The native resolution is Full HD 1920×1200, contrast 1000:1, and viewing angle is Horizontal: 160° / Vertical: 160°

Input/Output Interfaces

3G-SDI 4K-HDMI

S-1073H monitor supports:
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 1
HDMI 2.0 (4K60p) input × 1
HDMI 2.0 (4K60p) loop output × 1
3.5mm SDI/HDMI embedded audio output

3DLUT Log to Rec709

User LUT cube import

S-1073H monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2， S-log3, V-log, J-log1, RedLogFilm.
You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.

Embedded audio monitoring

Up to 16-ch meters with alert and select output

S-1073H supports SDI-16ch and HDMI-2ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectabl
