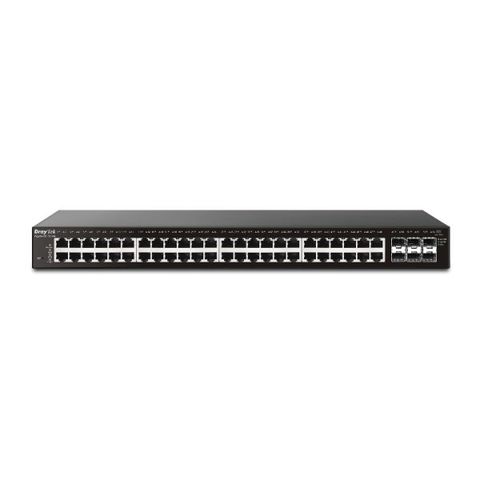

Managed Gigabit Switch 54 Port Poe Layer2+ Draytek Vigorswitch

P2540x

PHẦN CỨNG

Port

48 x 10/100/1000Mbps Giga Ethernet/ PoE, RJ-45

6 x 1/10 GbE SFP + slot.

1 cổng Console, RJ45.

Nguồn

Power Voltage: 100 ~ 240VAC, 50 ~ 60 HZ

PoE Standards: Poe/ PoE +, mode A

PoE Power Budget: 400 Watts

Nút điều khiển

1 x Factory Reset Button

Kích thước

441(W) x 270(D) x 45(H)

PHẦN MỀM

Chuẩn tương thích

802.3 10Base-T

802.3u 100Base-T

802.3ab 1000Base-T

IEEE802.3ae 10GBase-X

802.3x Flow Control

802.3 Auto-Negotiation

802.1q Tag-based VLAN

802.1p Class of Service

802.1d STP

802.1w RSTP

802.1s MSTP

802.3ad LACP

802.1ad QinQ

802.1x Port Access Control

802.1AB LLDP

802.3az EEE

Management

Web Interface: HTTP, HTTPS

Command Line Interface:Telnet, SSH

OpenVPN Client: Certificate-based authentication

User Authentication: Local Database, RADIUS, TACACS+

sFlow

SNMP: v1, v2c, v3

Private MIB: Có

RMON Group: 1, 2, 3, 9

LLDP: LLDP-MED, Media Endpoint Discovery Extension

Mail Alert: Port Status, Port Speed, System Restart, IP Conflict

Syslog: Có

2-Level Admin Privilege: Có

Multiple Admin Accounts: Có

Managed by Vigor Router SWM: Có

Config File Export/Import: Có

Dual Image: Có

SNTP (Simple Network Time Protocol)

Diagnostics Tools: Port Mirroring, Ping, Cable Test, Fan Test

Chất lượng dịch vụ

Support 8 Queues

Queue Scheduling: SPQ, WRR

CoS (Class of Service): 802.1p CoS, DSCP, CoS-DSCP, IP Precedence

Rate Limit & Shaping

Tính năng nâng cao

PoE

Power Limit

Scheduled On/Off

Power Cycle on Port:  Manual, Ping Watchdog

Security

Access Control list : MAC, IPv4, IPv6

Support Storm Control – Broadcast, Unknown Multicast, Unknown Unicast

DoS Attack Prevention

802.1x Port Access Control

IP Source Guard

IP Conflict Detection

IP Conflict Prevention

Loop Detection

Dynamic ARP Inspection

DHCP Snooping with Option 82

Multicast

Up to 256 Multicast Groups

IGMP Snooping v2/v3 (BISS)

IGMP Querier

MLD Snooping v1, v2 (Basic)

Group Throttling

Group Filtering

MVR (Multicast VLAN Registration)

Link Aggregation

Supports 8 Link Aggregation Groups with Static & LACP types

Up to 8 Ports for Each Group

Support Traffic Load Balancing  MAC Address, IP/MAC Address

Diagnostics

CPU/RAM/Port Utilization

Event Log

Port Mirroring

Ping

Port-based Cable Test

VLAN

Support IEEE 802.3Q VLAN

Tag-based

Port-based

Protected Port

Voice VLAN (OUI Mode)

Management VLAN

Surveillance VLAN

Port Isolatetion

GVRP

Q in Q

 Layer 3 Features:

Static Route

VLAN Route

DHCP Server
