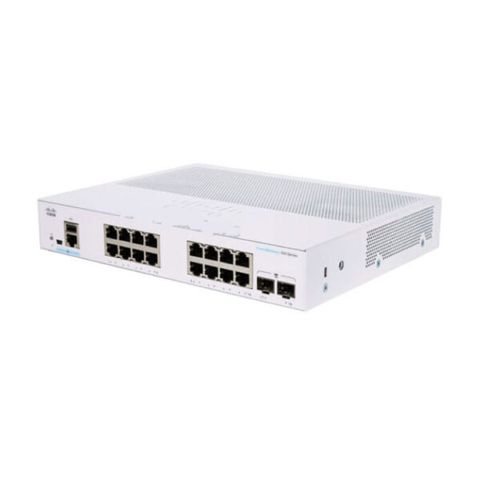

Managed Gigabit Switch Cisco 16 Port Cbs350-16t-2g-eu

Model

CBS350-16T-2G-EU

Performance

Capacity in Millions of Packets per Second (mpps) (64-byte packets)

26.78mpps

Switching Capacity

36.0Gbps

General

Jumbo frames

Frame sizes up to 9K bytes. The default MTU is 2K bytes

MAC table

16K addresses

Buttons

Reset button

Cabling type

Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T

LEDs

System, Link/Act, Speed

Flash

256 MB

CPU

800MHz ARM

DRAM

512 MB

Packet buffer

1.5 MB

Ports

Total System Ports

18 x Gigabit Ethernet

RJ-45 Ports

16 x Gigabit Ethernet

Combo Ports (RJ45 + Small form-factor pluggable [SFP])

2 x SFP

Console port

Cisco standard mini USB Type-B/RJ45 console port

USB slot

USB Type-A slot on the front panel of the switch for easy file and image management

Discovery

Bonjour

The switch advertises itself using the Bonjour protocol

Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP‑MED extensions

LLDP allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones

Cisco Discovery Protocol

The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics via Cisco Discovery Protocol

Power consumption (worst case)

System Power Consumption

110V=18.63W

220V=18.37W

Heat Dissipation (BTU/hr)

64.46

Environmental

Unit dimensions (W x D x H)

268 x 272 x 44 mm

Unit weight

1.78 kg

Power

100-240V, 50-60 Hz, internal, universal

Certification

UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Operating temperature

-5° to 50°C

Storage temperature

-25° to 70°C

Operating humidity

10% to 90%, relative, noncondensing

Storage humidity

10% to 90%, relative, noncondensing

Acoustic noise and Mean Time Between Failure (MTBF)

FAN (Number)

Fanless

MTBF at 25°C (hours)

2,165,105
