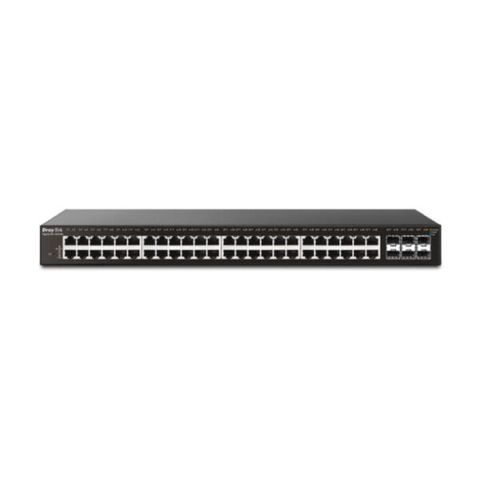

Managed Gigabit Switch Draytek 54-port Layer2+ Vigorswitch G2540x

G2540x

PHẦN CỨNG

Port

48 x 10/100/1000Mbps Giga Ethernet, RJ-45

6 x 1/10 GbE SFP slot.

Nguồn

Power Voltage: 100 ~ 240VAC, 50 ~ 60 HZ

Nút điều khiển

Button: 1x Factory Reset Button

Kích thước

441(W) x 270(D) x 45(H)

Trọng lượng

3.97 kg (8 lb)

PHẦN MỀM

Operation Mode

Web Interface: HTTP, HTTPS

Command Line Interface:Telnet, SSH

OpenVPN Client: Certificate-based authentication

User Authentication: Local Database, RADIUS, TACACS+

sFlow

SNMP: v1, v2c, v3

Private MIB: Có

RMON Group: 1, 2, 3, 9

LLDP: LLDP-MED, Media Endpoint Discovery Extension

Mail Alert: Port Status, Port Speed, System Restart, IP Conflict

Syslog: Có

2-Level Admin Privilege: Có

Multiple Admin Accounts: Có

Managed by Vigor Router SWM: Có

Config File Export/Import: Có

Dual Image: Có

SNTP (Simple Network Time Protocol)

Diagnostics Tools: Port Mirroring, Ping, Cable Test, Fan Test

Layer 3 Features: Static Route, VLAN Route

Chuẩn tương thích

802.3 10Base-T

802.3u 100Base-T

802.3ab 1000Base-T

IEEE802.3ae 10GBase-X

802.3x Flow Control

802.3 Auto-Negotiation

802.1q Tag-based VLAN

802.1p Class of Service

802.1d STP

802.1w RSTP

802.1s MSTP

802.3ad LACP

802.1ad QinQ

802.1x Port Access Control

802.1AB LLDP

802.3az EEE

Management

Multiple User Account

Two-level Security (Admin/User)

HTTP(s) Web User Interface

Simple Network Time Protocol

Link Layer Discovery Protocol

LLDP-MED, Media Endpoint Discovery Extension

Simple Network Management Protocl v1/v2c/v3

Support Generic Traps

Command Line Interface (CLI) via Telnet/SSH

DrayTek Switch Management

Tính năng nâng cao

VLAN:

– Max.Number of VLAN: 256

– VLAN Type:

802.1q Tag-based

MAC-based

802.1v Protocol-Based

Management VLAN

Voice VLAN

Surveillance VLAN

QoS:

Number of QoS Queues: 8

Queue Scheduling: SPQ, WRR

QoS (Class of Service): 802.1p CoS, DSCP, CoS-DSCP, IP Precedence

Rate Limit & Shaping: yes

Security:

 Access Control List: MAC, IPv4, IPv6

Storm Control: Broadcast, Unknown Multicast, Unknown Unicast

DoS Defense: yes

802.1x Port Access Control: yes

IP Source Guard

IP Conflict Prevention

Loop Protection

Dynamic ARP Inspection

DHCP Snooping with Option 82

THÔNG SỐ KHÁC

Chứng chỉ

Môi trường

Operating Temperature: 0 to 45°C

Storage Temperature: -40 to 70°C

Operating Humidity: 10 to 90% non-condensing

Storage Humidity: 5 to 90% non-condensing
