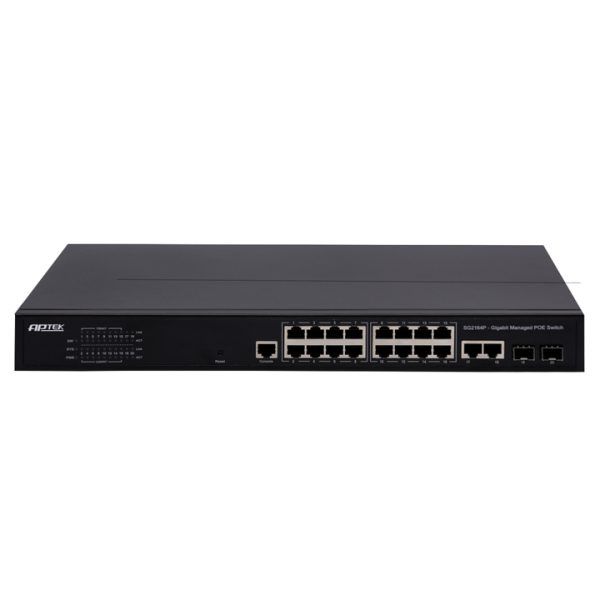

Managed Gigabit Switch Poe Aptek 16 Port Sg2164p

SG2164P

PHẦN CỨNG

Port

24 port x Gigabit Ethernet with PoE+ PSE, RJ-45 (Chuẩn IEEE 802.3af / 802.3at)

4 port uplink Gigabit, 2 port gigabit RJ45 và 2 port Gigabit SFP.

1 x Console Port, RJ45.

Nguồn

Nguồn: 100 ~ 240VAC

Tổng công suất PoE đạt 400 Watt

LED Indicators

Đèn báo nguồn, báo port.

Nút điều khiển

Nút Reset Factor

Kích thước

445mm× 285mm× 45mm

PHẦN MỀM

Chuẩn tương thích

IEEE 802.3 1 0Base-T

IEEE 802.3u 1 00Base-T

IEEE 802.3ab 1 000Base-T

IEEE 802.3x Flow Control Capability

ANSI/IEEE 802.3 Auto-negotiation

IEEE 802. 1p Class of Service

IEEE 802. 1d Spanning Tree

IEEE 802. 1w Rapid Spanning Tree

IEEE 802. 1s Multiple Spanning Tree

IEEE 802.3ad P ort T runk with LACP

IEEE 802. 1x Port Based Network Access Control

Chất lượng dịch vụ

Static Manual Aggregation

LACP Dynamic Aggregation  QoS

Class of Service  – 802.1p CoS  – DSCP  – Source IP, Destination IP, Port Number

Queue Setting  – WRR  – Strict Priority

Rate Limit

Tính năng nâng cao

Security

Storm Control

Broadcast, Unknown Multicast, Unknown Unicast

DoS Defend

Protected Port

Access Control List

MAC/IPv4/IPv6

Port Securit y

IP Source Guard and ARP Inspection

DHCP Snooping with Option 82

Multicast

Up to 256 Multicast Groups

Multicast Group Filtering/Throttling

IGMP Snooping v2/v3 (BISS)

MLD Snooping v1/v2(Basic)

IGMP/MLD Querier

Immediate Leave

Multicast VLAN Registration

Link Aggregation

Support 8 Link Aggregation Groups with Static & LACP types

Up to 8 Ports for Each Group

Support Traffic Load Balancing

VLAN

IEEE 802.3Q VLAN

Tag-based

Port-based

QinQ (Basic)

General VLAN Registration Protocol

Supports Following Types of VLANs

Voice VLAN (OUI Mode)

Surveillance VLAN (OUI Mode)

Protocol VLAN

MAC-based VLAN

Management VLAN

PoE

PoE Mode: Switch allocates sufficient power the PoE PD asked for, and dynamically distribute power to all devices.

Status: Status includes class and consumed power by PDs.

Scheduling: Support scheduling rules, applying multiple ports.

Power Limit: Supports customizing maximum supplying power per port.

AAA

1x – Single/Multiple

Port-based

MAC-Based

Guest VLAN

External AAA server using RADIUS

Diagnostics

CPU/RAM/Port Utilization

Syslog

Violate/Non-Violate Memory

External Server

Port Mirroring

Ping

Port-based Cable Test

THÔNG SỐ KHÁC

Môi trường

Operating: 0 ~ 55 °C

Storage: 0 ~ 70 °C

Operating Humidity: 10% ~ 90% (Non-condensing)
