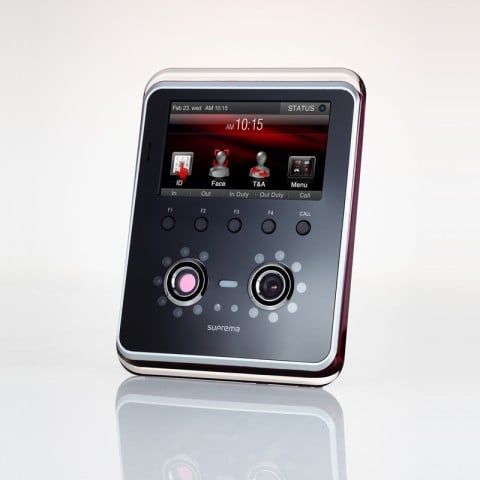

Máy Chấm Công Suprema Facestation Fsm

Thông số kỹ thuật

Hãng sản xuất    Suprema

Option  125kHz EM & 13.56Mhz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa           125kHz EM, HID Prox & 13.56Mhz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, iCLASS SE/SR/Seos

Mobile Card       NFC        NFC, BLE

Ingress Protection           Not supported  Not supported

Vandal Proof      Not supported  Not supported

Template             SUPREMA           SUPREMA

Extractor / Matcher        SUPREMA           SUPREMA

Live Face Detection         Supported          Supported

Users (1:1)* Based on one face enrollment per user       30000    30000

Users (1:N)* Based on one face enrollment per user      3000       3000

Max. Face per User         5              5

Text Log               5000000                5000000

Image Log           50000    50000

CPU       1.4 GHz Quad Core          1.4 GHz Quad Core

Memory              8GB Flash + 1GB RAM    8GB Flash + 1GB RAM

LCD Type             4” color TFT LCD                4” color TFT LCD

Sound   24 bit Voice DSP (echo cancellation)        24 bit Voice DSP (echo cancellation)

Operating Temperature                -20°C ~ 50°C        -20°C ~ 50°C

Storage Temperature    -40°C ~ 70°C        -40°C ~ 70°C

Operating Humidity        0% ~ 80%, non-condensing          0% ~ 80%, non-condensing

Storage Humidity             0% ~ 90%, non-condensing          0% ~ 90%, non-condensing

Weight Device: 548g Bracket: 74g (Including washer and bolt)     Device: 548g Bracket: 74g (Including washer and bolt)

Dimension (WxHxD, mm)             141 x 164 x 125  141 x 164 x 125

Tamper                Supported          Supported

Wi-Fi      Not supported  Built-in, IEEE 802.11 b/g

Ethernet              10/100/1000 Mbps, auto MDI/MDI-X      10/100/1000 Mbps, auto MDI/MDI-X

RS-485  1ch Host or Slave (Selectable)    1ch Host or Slave (Selectable)

Wiegand              1ch Input, 1ch Output    1ch Input, 1ch Output

TTL Input             2ch Inputs           2ch Inputs

Relay     1 Relay  1 Relay

USB        USB 2.0 (Host)   USB 2.0 (Host)

SD Card                Not supported  Not supported

PoE        Not supported  Not supported

Intercom             Supported          Supported
