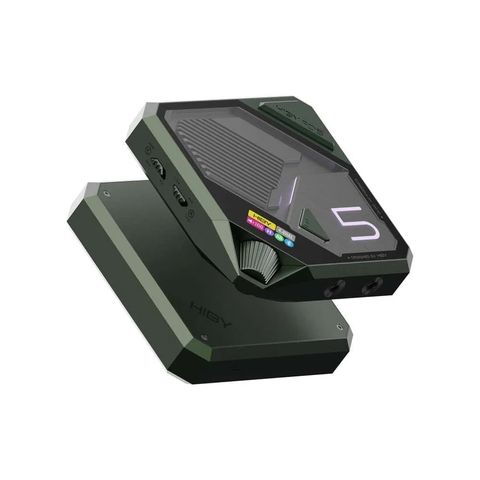

Máy Nghe Nhạc Hiby FD5

Thông số kỹ thuật:

Features

1523mW High Driving Power

All Desktop Audio Functions Supported

Isolated Power Supply

4x AKM4493 DAC Array

Class A / AB Amplification

Power Supply Filtering/Regen

DSD512

PCM768kHz/32bit

High-Res Bluetooth

Dual Femtosecond-Grade Crystal Oscillators

MQA 8X

Colour OLED Display

Specifications

LO Output: 3.5LO, 4.4LO

Output Level:

2.0Vrms(unloaded)

4.0Vrms(unloaded)

Output Level:

2Vrms(10KM)

3.9Vrms(10KM)

THD+N: 0.0003%, 0.0004%

Noise: 1.6μ, 2.2μ

SNR: 122dB, 126dB

Dynamic Range: 123dB, 126dB

Crosstalk Rejection: 99dBr, 96dBr

Frequency Response: 20-90kHz, 20-90kHz

3.5PO Output

3.5PO(AB)

3.5PO(A)

Output Level

4Vrms(unloaded)

4Vrms(unloaded)

Output Level

3.9Vrms(320)

3.9Vrms(320)

Maximum Output Power

475mW

475mW

THD+N

0.0006%

0.0006%

Noise

2.8μ

2.8μ

SNR

123dB

123dB

Dynamic Range

124dB

124dB

Crosstalk Rejection

68dBr

68dBr

Frequency Response

20-90kHz

20-90kHz

4.4BAL Output

4.4BAL(AB)

4.4BAL(A)

Output Level

8Vrms(unloaded)

8Vrms(unloaded)

Output Level

7.0Vrms(320)

7.0Vrms(320)

Maximum Output Power

1523mW

1523mW

THD+N

0.0004%

0.0004%

Noise

3.6μ

3.6μ

SNR

125dB

125dB

Dynamic Range

127dB

127dB

Crosstalk Rejection

106dBr

106dBr

Frequency Response

20-90kHz

20-90kHz
