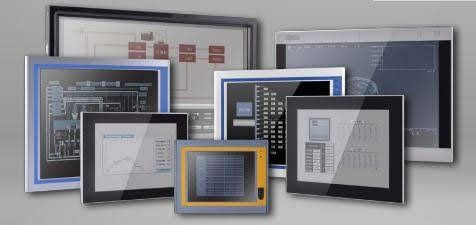

Máy tính công nghiệp màn hình cảm ứng HMI Nodka China

Processor

7200U/3855U, i7 5500U/i5 5300U

Base Frequency

Dual Core 2.3GHz/1.6GHz/Dual Core 2.4GHz/Dual Core 2.3 GHz

L3 Cache

2MB/3MB /4MB/3M

Chipset

Integrated PCH-LP

Memory

1x 204-pin DDR3L-1600MHz SODIMM,support up to 16GB

Storage Medium

1 x 2.5" SATA bay + 1 x mSATA

OS

Support Win7/Win8/Win10/WES7/Linux/VxWorks,QNX

LAN

2 x In-tel i210 1000Mbps RJ-45 with surge protection,lightning protection design and 15KV ESD protection

Speaker

Buit-in small speaker

USB

4 x USB3.0/2.0/1.1

COM

2 x RS-232 / RS-485 with surge protection,RS485 support automatic flow control

Expansion

1 x Mini-PCIe slot, extensible 3G,WIFI wireless card; 1 x EasyBUS slot

Back I/O

DVI-I / 2 x GLAN / 4 x USB / 2 x COM / 2 x PS2 / Line-out / Mic-in

Mounting

Panel/VESA

Power Input

12-24VDC ±10% , support reverse polarity protection,overvoltage protection,overcurrent protection

Overall size

321mm×247mm×72mm(12.64"×9.72"×2.83")

Cut Size

304mm×230mm (12.97" × 9.06")

LCD Size / Type

12'' XGA TFT

Resolution

800X600/1024 x 768

Maximum color

16.7MB

Active Area (W x H)

246mm×184.5mm( 9.68" × 7.26")

Backlit

LED

Backlit MTBF

30,000 hours

Pixel Pitch

0.3075×0.3075

Brightness

450cd/sqm

Contrast ratio

800:1

Max view angle

(L)80/(R)80/(T)60/(B)80

Touch Screen Size/Type

Resistive touch screen

Resolution

4096*4096

Transmittance

> 81%

Controller

USB

Driver support

Win7, Windws 8, Win 10, Linux

Response Time

<5ms

Surface hardness

Mohs' Number 3H

Click life

250g/35,000,000 times

Draw life

250g/5,000,000 times

Working temp.

-20 ~ 60° C (-4~140℉)( Use a wide temperature SSD )
0 ~ 45° C (32~113℉) (Use ordinary temperature HDD/SSD)

Storage Temp.

-30~+80℃( (-22 ~ 176℉)

Relative humidity

5~95%(No condensation)

Vibration at work

SSD applied: 1.5 Grms, IEC 60068-2-64, 5 ~ 500 Hz, 1 hr/axis

Work shocks

SSD applied: 10 Grems, IEC 60068-2-64, Half sine wave,for 11 ms

EMC

CE/FCC Class A

Water-proof

Front panel IP65
