| SYSTEM | |
| CPU | Onboard Intel® Processor N-series Processors (formerly Alder Lake N) Intel® Processor N97 |
| SYSTEM MEMORY | DDR5 4800MHz SODIMM x 1 (up to 32GB) |
| DISPLAY INTERFACE | HDMI 2.0b x 1 (Max Resolution: 4096x2160@60Hz) DisplayPort for DP1.4a x 1 (Max Resolution: 4096x2304@60Hz) USB3.2 x 2 (type C,support DP ALT mode, Max Resolution: 4096x2304@60Hz) Supports 3 Displays |
| STORAGE DEVICE | M.2 2260/2280 M-key (SATA or PCIe Gen.3 x2) support NVMe x 1 |
| ETHERNET | Intel® I225-V x 2 (2.5GbE) |

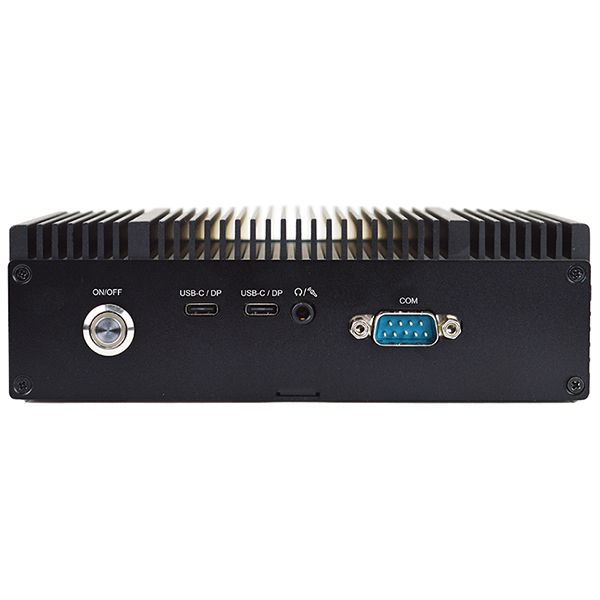

| Front I/O | Power button Power LED USB 3.2 x 2 (type C, support DP ALT mode) Combo Audio x 1 (Line out & Mic) DB-9 for RS-232/422/485 x 1 |
| Rear I/O | SMA Antenna Hole x 3 RJ45 x 2 USB2.0 x 1 USB3.2 Gen2 x 2 Ground screw HDMI x 1 DP x 1 GPIO x 1 DC jack x 1 |
| EXPANSION | M.2 2230 E-Key for WiFi module x 1 |
| INDICATOR | Power LED x 1 |
| OS SUPPORT | Windows® 11 Linux |
| POWER SUPPLY | |
| POWER REQUIREMENT | MB : DC Input 12~19V Adapter : AC100~240V / DC12V_3.3A_40W |
| MECHANICAL | |
| MOUNTING | Desktop, Wallmount, Din Rail |
| DIMENSIONS (W x H x D) | 160(W) x 109.2(D) x 50.5(H) mm |
| GROSS WEIGHT | 2.4 kg |
| NET WEIGHT | 1.4 kg |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | 0°C ~ 60°C (32°F ~ 140°F) (Under the condition of using M.2 interface SSD) |
| STORAGE TEMPERATURE | -40°C ~ 85°C (-40°F ~185°F) |
| OPERATING HUMIDITY | 10 ~ 95% @ 40°C, non-condensing |
| CERTIFICATION | CE/FCC Class A , LVD |
