| SYSTEM | |

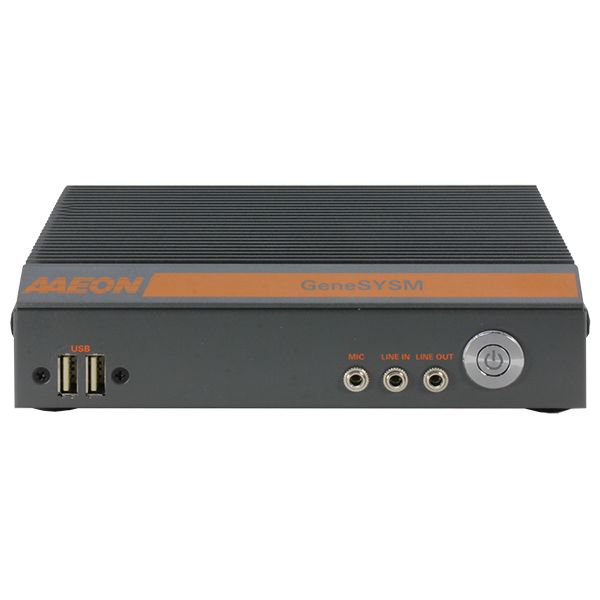

| FORM FACTOR | 3.5" SubCompact Board System |
| CPU | Intel® Core™ i3-N305 (8C/8T, up to 3.8 GHz, 15W) |
| CHIPSET | Integrated with Intel® SoC |
| MEMORY TYPE | DDR5 4800, Single Channel SODIMM x 1, Max.16GB, Non-ECC |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | TPM2.0 |
| RTC Battery | Lithium Battery 3V/240mAh |
| DIMENSION | 7.00" x 5.28" x 1.69" (178mm x 134.1mm x 43mm) |
| OS Support | Windows 10 (64bit) Ubuntu 22.04 / Kernel 5.15.0-25-generic |
| POWER | |
| POWER REQUIREMENT | +9-36V |
| POWER SUPPLY TYPE | ATX |
| CONNECTOR | DC Jack Connector |
| POWER CONSUMPTION | Intel® Core™ i3-N305, DDR5 16GB x 1, 3.4A @+12V(Typical) Intel® Core™ i3-N305, DDR5 16GB x 1, 5.24A @+12V(Max) |
| DISPLAY | |
| CONTROLLER | Intel® UHD Graphics |
| LVDS/eDP | — |
| Display Interface | HDMI 1.4 x 1, up to 3840 x 2160 @30Hz VGA x 1, up to 1920 x1080 |
| Multiple Display | Up to 2 Simultaneous Displays |
| AUDIO | |
| CODEC | Realtek ALC897 |
| AUDIO INTERFACE | Line-in/Line-out/MIC |
| EXTERNAL I/O | |
| ETHERNET | Intel® i226 2.5G, RJ-45 x 3 |
| USB | USB3.2 Gen 2 x 2 ports USB2.0 x 4 |
| SERIAL PORT | COM1, COM2 (RS232/422/485,supports 5V/12V/RI) COM3, COM4 (RS-232 x 2, optional) |
| VIDEO | HDMI 1.4 x 1, VGA x 1 |
| INTERNAL I/O | |
| SATA | SATA 6.0 Gb/s x 1 +5V SATA Power Connector x 1 |
| AUDIO | Audio Header x 1 |
| DIO/GPIO | GPIO 8-bit |
| SMBus/I2C | SMBus/I2C x1 (Default: SMBus) |
| FAN | — |
| SIM | Nano SIM x 1 |
| FRONT PANEL | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| EXPANSION | |
| Mini PCI-E/mSATA | Full-size mSATA / mPCIe x 1 (Default: mSATA, select by BIOS) |
| M.2 | M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB2.0) M.2 3052 B-Key x 1 (USB3.2 Gen2 + USB2.0) |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMP | 14°F ~ 140°F (-10°C ~ 60°C) 0.5m/s air flow |
| STORAGE TEMP | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 337,963 |
| EMC | CE/FCC Class A |
