| SYSTEM | |

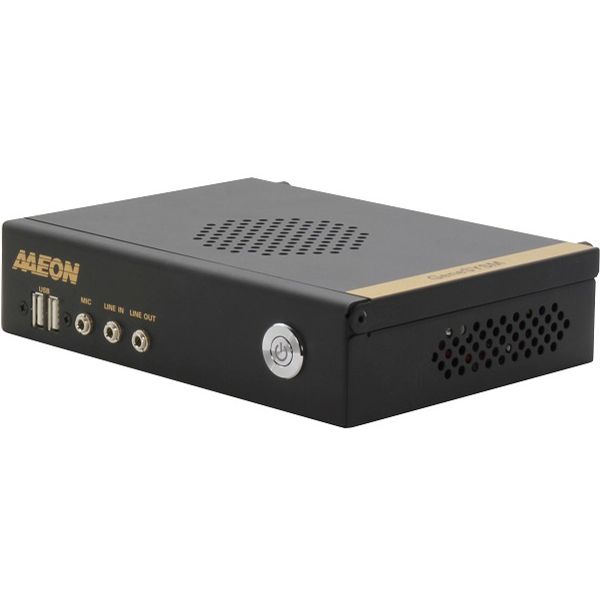

| FORM FACTOR | 3.5" SubCompact Board System |
| CPU | Intel® 12th Generation Core™ CPU Intel® Core™ i3-1220PE (4PC+4EC/12T, 1.50 GHz, 28W) |
| CHIPSET | Integrated with Intel® SoC |
| MEMORY TYPE | DDR5 4800 MHz, Dual Channel SODIMM x 2, up to 64GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | TPM2.0 (NPCT750AABYX) |
| RTC Battery | Lithium Battery 3V/240mAh |
| DIMENSION | 7.00" x 5.28" x 1.69" (178mm x 134.1mm x 43mm) |
| OS Support | Windows 10/11 (64bit) Linux Ubuntu 20.04/Kernel 5.15 |
| POWER | |
| POWER REQUIREMENT | +9-36V |
| POWER SUPPLY TYPE | ATX |
| CONNECTOR | DC Jack Connector |
| POWER CONSUMPTION | Intel® Core™ i7-1270 PE, DDR5 32GB x 2, 5.72A@ +12V(TYPICAL) Intel® Core™ i7-1270 PE, DDR5 32GB x 2, 7.95A@ +12V(MAX) |
| DISPLAY | |
| CONTROLLER | Intel® Iris® Xe Graphics Intel® UHD Graphics |
| LVDS/eDP | — |
| Display Interface | HDMI 2.1 x 1, up to 8K x 4K@60Hz or 4K2K 120Hz DP 1.4 x 1, up to 7680 x 4320@60Hz 30bpp (support DP++) Type-C x 1 (USB 3.2 Gen 2, DP 1.4, PD 5V/3A) |
| Multiple Display | Up to 3 Simultaneous Displays |
| AUDIO | |
| CODEC | Realtek ALC897 |
| AUDIO INTERFACE | Line-in/Line-out/MIC |
| EXTERNAL I/O | |
| ETHERNET | Intel® i219, 10/100/1000Base Intel® i226, 10/100/2500Base |
| USB | USB3.2 Gen 2 x 3 USB Type-C x 1 (USB 3.2 Gen 2, DP 1.4, PD 5V/3A) USB2.0 x 2 |
| SERIAL PORT | COM1, COM2 (RS232/422/485, supports 5V/12V/RI) |
| VIDEO | HDMI 2.1 x 1 DP 1.4 x 1 |
| INTERNAL I/O | |
| SATA | SATA III x 1 +5V SATA Power Connector x 1 |
| AUDIO | Audio Header x 1 |
| DIO/GPIO | GPIO 8-bit |
| SMBus/I2C | SMBus/I2C x1 (Default: SMBus) |
| FAN | 4pins Smart Fan x 1 |
| SIM | Nano SIM x 1 |
| FRONT PANEL | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| EXPANSION | |
| M.2 | M.2 2280 M-Key x 1 (PCIe 4.0 [x4] x 1) M.2 3052/3042/2242 B-Key x 1 (PCIe 3.0 [x2]/SATA + USB 3.2), Default: SATA (selected by BOM) M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB 2.0) |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMP | 32°F ~ 122°F (0°C ~ 50°C) 0.5 m/s air flow |
| STORAGE TEMP | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 344,735 |
| EMC | CE/FCC Class A |
