| SYSTEM | |

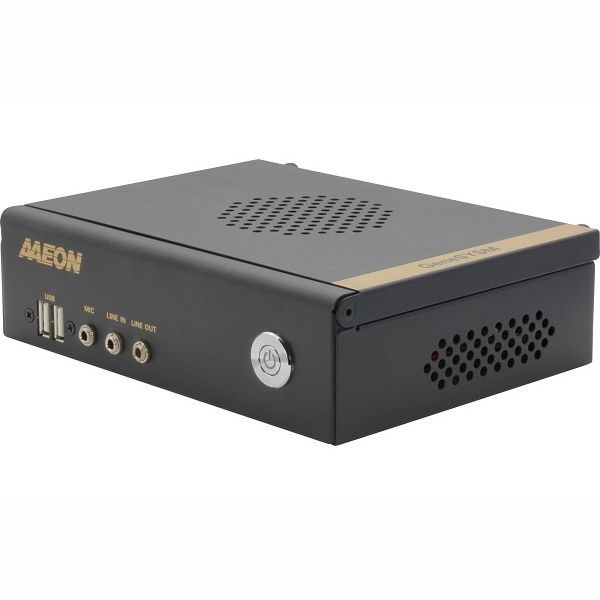

| Form Factor | 3.5" SubCompact Board System |
| CPU | Intel® 11th Generation Core™ CPU i7-1185G7E (4C/8T, 1.80GHz, up to 4.40GHz, TDP-up 28W) |
| Chipset | Integrated with Intel® SoC |
| Memory Type | DDR4 up to 3200MHz, Dual Channel SODIMM x 2,up to 64GB,Support IBECC(select SKUs) |
| BIOS | UEFI |
| Wake on LAN | Yes |
| Watchdog Timer | 255 Levels |
| RTC BATTERY | Lithium Battery 3V/240mAh |
| Dimension (L x W) | 7.00" x 5.28" x 1.97" (178.0mm x 134.1mm x 50.0mm) |
| OS SUPPORT | Windows 10 (64bit) Linux Ubuntu 20.04.3(IOT)/Kernel 5.13 |
| Power | |
| POWER REQUIREMENT | +9-36V |
| POWER SUPPLY TYPE | ATX |
| CONNECTOR | DC Jack Connector |
| POWER CONSUMPTION | Intel® i7-1185G7E, DDR4 3200MHz 32GB x 2, 4.96A@ +12V(TYPICAL) Intel® i7-1185G7E, DDR4 3200MHz 32GB x 2, 7.32A@ +12V(MAX) |
| Display | |
| CONTROLLER | Intel® Iris® Xe Graphics Intel® UHD Graphics |
| DISPLAY INTERFACE | HDMI 2.0b x 1 DP1.4 x 2 Type-C DP1.4 x 1 |
| MULTIPLE DISPLAY | Up to 4 Simultaneous Displays |
| Audio | |
| CODEC | Realtek ALC897/892 |
| AUDIO INTERFACE | Line-in/Line-out/MIC (Optional) |
| EXTERNAL I/O | |
| ETHERNET | Intel® i219, 10/100/1000Base,RJ-45 x 1 Intel® i225/i226, 10/100/2500Base,RJ-45 x 1 |
| USB | USB3.2 Gen 2 x 4 USB3.2 Gen 2 Type C x 1 (PD 5V/3A) USB2.0 x 2 |
| SERIAL PORT | COM1 (RS232/422/485) COM2 (RS232/422/485,supports 5V/12V/RI) |
| VIDEO | HDMI 2.0b x 1 DP1.4 x 2 Type-C DP1.4 x 1 |
| INTERNAL I/O | |
| SATA | SATA III x 1, +5V SATA Power Connector x 1 |
| AUDIO | Audio Header x 1 |
| SMBUS/I2C | Default: SMBus |
| FAN | 4pins Smart Fan x 1 |
| SIM | Nano SIM x 1 |
| FRONT PANEL | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| EXPANSION | |
| MINI PCI-E/MSATA | Full-Sized mSATA/mPCIe x 1 (default: mSATA, select with BIOS) |
| M.2 | M-Key 2280 x 1 (PCIex4) E-Key 2230 x 1 (PCIe, USB2.0) |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | 32°F ~ 122°F (0°C ~ 50°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 329884 |
| EMC | CE/FCC Class A |
