| SYSTEM | |

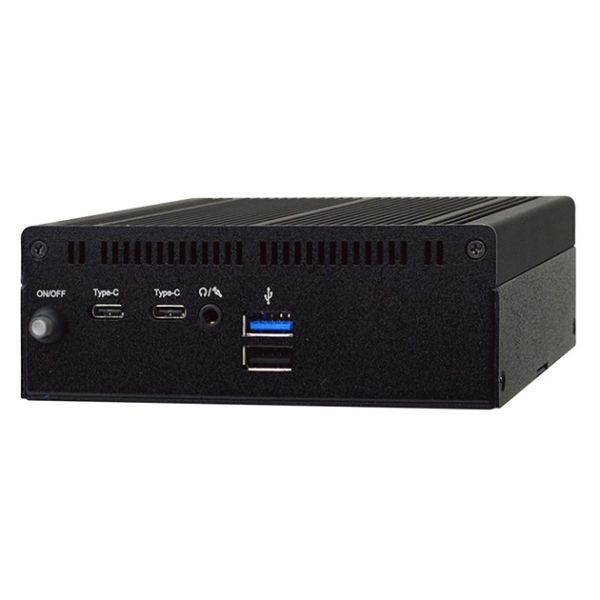

| Model | HBFBU03I-6412-E (EMMC+WIFI) |
| CPU / Chipset | Intel® Celeron® J6412 (formerly Intel Elkhart Lake) |
| BIOS | AMI Flash ROM |
| Memory | DDR4 3200MHz SO-DIMM x 1 (up to 32GB) |
| Network | Intel i255V x 2 (2.5GbE) |
| Graphics | Intel® HD Graphics, shared memory DP x 1 (Max Resolution: 4096x2160@60Hz) HDMI 2.0 x 2 (Max Resolution: 4096x2160@60Hz) Support Triple Displays |
| Storage | M.2 M-key x 1 (2260/2280, PCIe Gen.3 x 2/SATA interface) support NVME 64GB eMMC onboard |
| Expansion | M.2 E-key x 1 (2230, PCIe Gen.3 x1/USB2.0 interface) |
| Rear Panel I/O | RJ45 x 2 DP x 1 DC-in x 1 HDMI x 2 USB3.1(Gen.2) x 1 |
| Front Panel I/O | Power button + Power LED x 1 USB(TypeC) x 2 Audio(Line out+MIC) x 1 USB2.0 x 1 USB3.1(Gen.2) x 1 |
| Internal Connector | 64GB eMMC onboard (If use Win 10 OS, we recommend the eMMC is use for OS boot up purpose.) |
| Power Source | Adapter : AC 90~240V input / DC12V_40W output MB : DC12V input |
| Compliance | CE, FCC, LVD, RoHS, ErP Ready |
| Dimensions | System : 125 (W) x 109.2 (D) x 44.5 (H) mm Color Box : 158 (W) x 167 (D) x 123.6 (H) mm |
| Temperature | Operating Temperature: -20 ~ 60° C (Under the condition of using M.2 interface SSD) Storage Temperature: -40 ~ 85° C Humidity: 10% ~ 95% RH @40°C (non-condensing) |
| OS Support | Windows 10, Windows 11, Linux |
| Warranty | 2 Years limited warranty |
